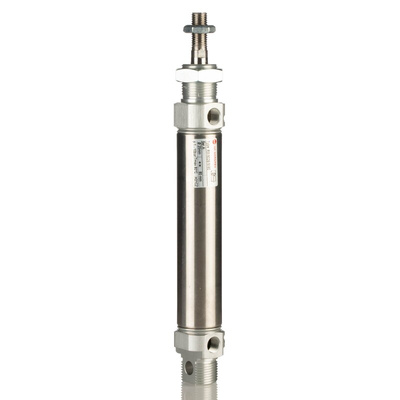

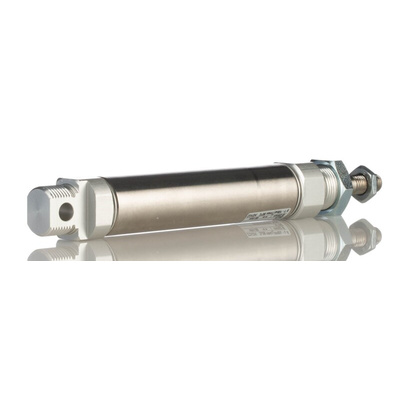

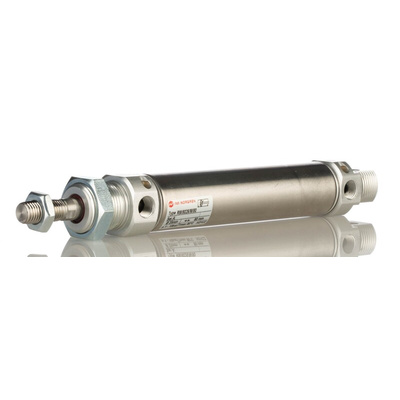

RM/8026/M/80, Norgren Pneumatic Roundline Cylinder - 26mm Bore, 80mm Stroke, RM/8026/M Series, Double Acting

IMI Norgren Pneumatic Roundline Cylinder, 26mm Bore, 80mm Stroke - RM/8026/M Series - RM/8026/M/80

Install this double-acting pneumatic roundline cylinder from IMI Norgren to ensure your commercial and industrial setups perform effectively. It's an actuator that uses compressed air to generate linear motion through a piston rod. A high-strength, double-crimp end cap provides a long and reliable service life by keeping moisture and contaminants out. Buffering or adjustable cushioning reduces acceleration forces at the end of the cylinder to minimise vibrations and impacts. The double-action mechanism makes this unit faster and stronger than single-action options and gives you more control over movement in your machinery.

Features & Benefits

• Stainless steel barrel and aluminium alloy end caps resist corrosion, for use in damp environments
• Nitrile butadiene rubber (NBR) seals withstand abrasion, ensuring the unit is airtight and delivers optimal performance

Applications

• Factory automation systems
• Food and beverage industry

What's the difference between a double-acting and single-acting cylinder?

A single-acting cylinder forces the piston in one direction using only one port, then returns it with a spring. A double-acting cylinder uses two ports – one for extending and one for retracting the cylinder. This provides more energy-efficient movement and is faster than a single-acting cylinder.

Datasheet - RM/8026/M/80
