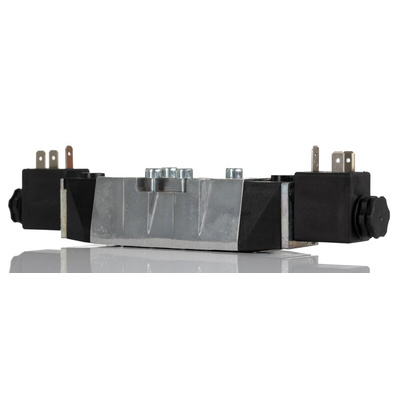

SXE9673-A60-00-13J, Norgren 5/3 Pneumatic Solenoid Valve - Solenoid/Solenoid ISO Star Series 24V dc

IMI Norgren Pneumatic Solenoid Valve, Sub-Base Mounting Style, 5/3 Operating Type - ISO*Star Series - SXE9673-A60-00-13J

Want to delegate control of your compressed air system? Give this pneumatic solenoid valve from IMI Norgren the job of managing the flow of media. It's ideal for low-pressure applications working at between 2 and 10 bar. A glandless spool and sleeve feature a PTFE coating that shrugs off debris and contaminants, so you can be sure of the unit's long service life with minimal maintenance. The die-cast aluminium housing resists mechanical stress, impacts and abrasion to roll with the punches in tough environments.

Features & Benefits

• Manual override for control in the event of a power outage, reducing downtime
• IP65 rating means it's completely dust-tight and resists low-pressure water jets from all directions
• NBR seals don't corrode, so prevent leaks and maintain pressure
• Light 450g weight doesn't add excess load to your setup

Applications

• Automotive manufacturing
• Hoisting equipment
• Mining and mineral processing

Can I use this device in harsh industrial conditions?

Yes. This device operates in a broad temperature range of -15°C to +50°C, so it's ideal for harsh industrial conditions.

What are the valve's screws made from?

This assembly comes with screws made from zinc-coated steel to minimise corrosion and deliver long-term performance.

Datasheet - SXE9673-A60-00-13J

Manual - Operating Manual V71038-K00 ISO*STAR & MIDI*STAR Valve Series (ATEX)
