V60A513A-A3000, Norgren 5/2 Pneumatic Solenoid Valve - Solenoid/Air G 1/8 V60 Series

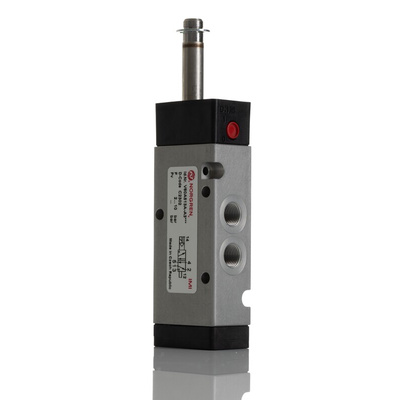

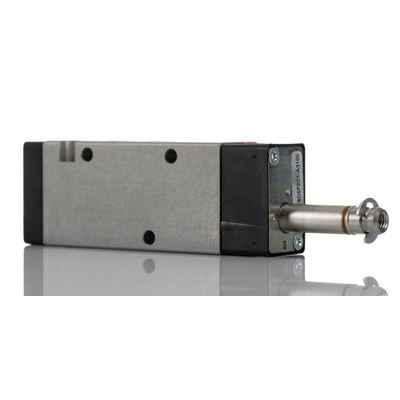

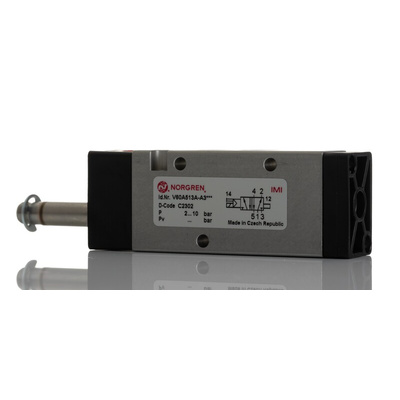

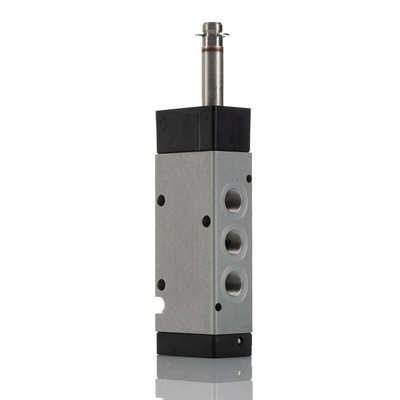

IMI Norgren Pneumatic Solenoid Valve, 5/2 Valve Operation, 750L/min Maximum Flow Rate - V60 Series - V60A513A-A3000

Point your hardware's compressed air in the right direction with this IMI Norgren pneumatic solenoid valve. By controlling with an internal air-powered spring, it directs airflow without the need for an extra connection. The device tackles flow rates up to 750l/min to keep up with intense tasks. It rotates in 90° steps once mounted to make for simple valve access. This unit's IP65 rating indicates it shrugs off wear from dust and low-pressure water jets for durability.

Features & Benefits

• Corrosion-resistant aluminium housing for reliability in damp settings
• Manual override opens ports without power, making it easy to check components during supply issues
• Industry-standard G1/8 thread port for versatility
• NBR rings form airtight seals to protect system pressure
• Broad operating pressure range of 2 to 10 bar for use with heavy-duty applications

Applications

• Process control
• Manufacturing industry
• Bottling plants

Can I control this solenoid valve using an electrical coil?

Yes, the unit supports a solenoid coil (723-539), letting it work with air or electrical power for flexibility.

Datasheet - V60A513A-A3000
