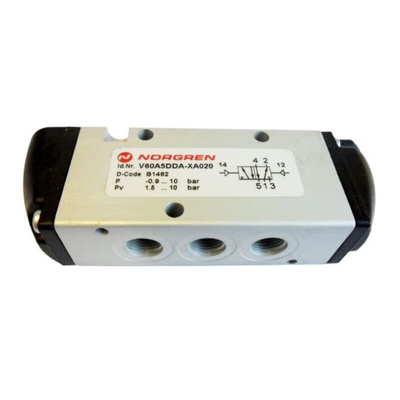

V60A5DDA-XA020, Norgren 5/2 Solenoid Pilot Valve - Pilot/Pilot G 1/8 V60 Series

IMI Norgren Solenoid Pilot Valve, 4 x 90° Rotable Solenoid, Inline Mounting - V60 Series - V60A5DDA-XA020

Put your pneumatic system in safe hands with this solenoid pilot valve from IMI Norgren. It reliably directs or stops the circulation of compressed air at rates up to 750L/min. As the unit's housing is made from die-cast aluminium alloy, you can rest assured it's resistant to corrosion and impact, so will deliver a long service life. Thanks to a 100% continuous duty rating, it's a true workhorse that doesn't pause for a break. A wide operating temperature range of -10°C to +50°C, means you can count on this unit to keep its cool in challenging environments.

Features & Benefits

• IP65 rating when installed with a sealed plug indicates protection against low-pressure water jets
• Manifold system for rapid assembly
• Compact dimensions of 32 (H) x 140 (L) x 50mm (W) make it ideal for use in confined spaces

Applications

• Food production
• Industrial automation
• Agricultural machinery

What's the difference between electromagnetically and pneumatically controlled valves?

Electromagnetically controlled valves are operated using an electrical signal, offering a quick response time, accuracy and repeatability. On the other hand, pneumatically controlled valves like this one are operated using compressed air, which provides durability and reliability.

Datasheet - V60A5DDA-XA020
