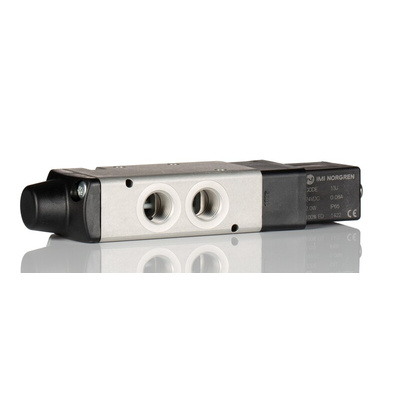

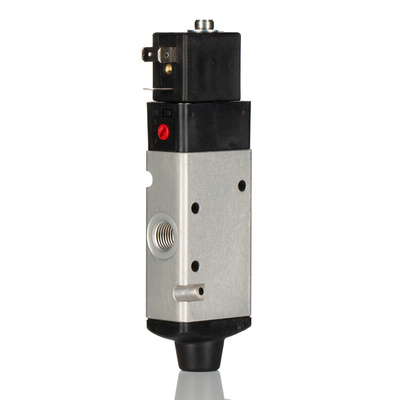

V61B417A-A213J, Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Spring V61 Series

IMI Norgren Pneumatic Solenoid Valve, 3/2 Function, 2 to 10 Bar Operating Pressure - V61 Series - V61B417A-A213J

Direct, control and stop the flow of compressed air through your pipework with this pneumatic solenoid valve from IMI Norgren. A small electrical current triggers the valve to open and close, so you don't need to manually operate it. As the unit supports compressed, filtered lubricated or non-lubricated air, you can use it across numerous applications. A broad operating temperature of -10°C to +50°C makes this a safe choice to use in challenging industrial environments.

Features & Benefits

• Inline mounting style takes up minimal installation space
• IP65 rating means it’s dustproof and protected against low-pressure jets of water
• Aluminium housing material for corrosion resistance
• Multiple manual override options for peace of mind in case of an emergency
• High flow rate of 1300L/min for reliable performance

Applications

• Factory automation
• Process control
• Automotive industry

What's the operating pressure of this valve?

This pneumatic solenoid valve has a wide operating pressure range of 2 to 10 bar, so can handle fluctuating pressures.

What voltage tolerance does this valve have?

This valve has a voltage tolerance of ±10%, meaning it supports a wide range of industrial applications.

Datasheet - V61B417A-A213J
