V61B513A-A213J, Norgren Pneumatic Solenoid Valve - Solenoid/Air V61 Series

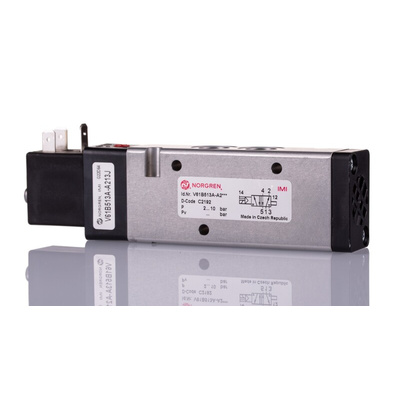

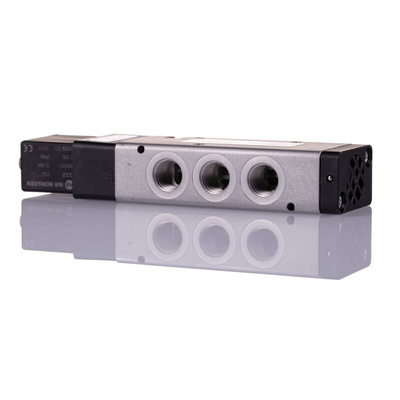

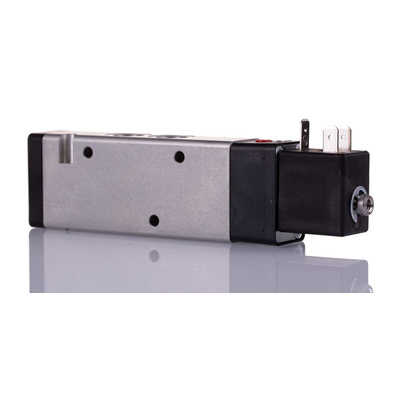

IMI Norgren Pneumatic Solenoid Valve, 5/2 Function, 10 Bar Maximum Operating Pressure - V61 Series - V61B513A-A213J

This pneumatic solenoid valve from IMI Norgren uses an external air source to open and close a coil attached to the valve. This action directs or stops the flow of compressed air in a pipe, without the need for time-consuming manual operation. As the unit works without an electrical current, it's a power-saving choice. For straightforward installation, you can mount it using the manifold feature. An IP65 rating means the unit's dust-tight and protected against low-pressure jets of water, so is safe to use in contaminated environments.

Features & Benefits

• Compatible with filtered, lubricated or non-lubricated compressed mediums for versatility
• Multiple manual override options to give you peace of mind in case of an emergency
• Corrosion-resistant aluminium housing material for an extended lifespan
• Operating temperature of -10°C to +50°C for safe use in industrial environments
• Operating pressure of 2 to 10 bar for consistent flow

Applications

• Larger industrial valves
• Power and control systems
• Factory automation

What's the voltage tolerance of this valve?

It has a voltage tolerance of ±10%, meaning it supports a wide range of industrial applications.

Datasheet - V61B513A-A213J
