V61B513A-A219J, Norgren Pneumatic Solenoid Valve - Solenoid/Air G 1/4 V61 Series 220 V ac, 240 V ac

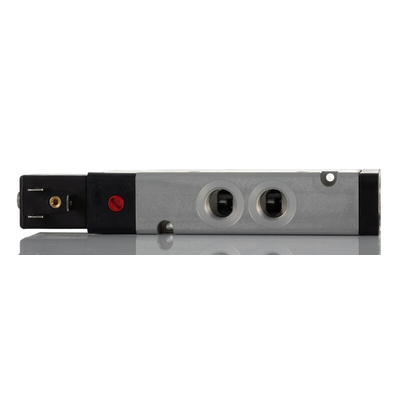

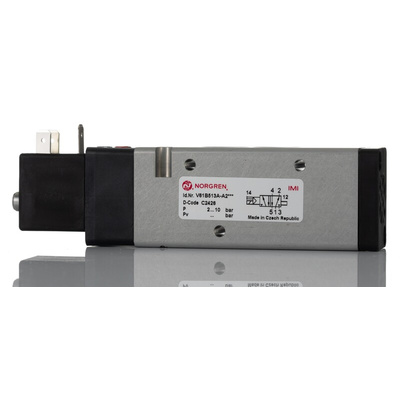

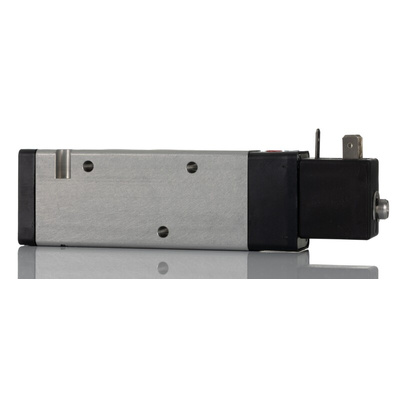

IMI Norgren Pneumatic Solenoid Valve, Internal Pilot Supply, 220 to 240V AC Supply Voltage - V61 Series - V61B513A-A219J

Looking for a device to make compressed air management a breeze? Pick up this pneumatic solenoid valve from IMI Norgren. When an electric current passes through the solenoid coil, it generates a magnetic field that pulls or pushes a plunger to open or close the valve. Robust aluminium housing has what it takes to endure harsh operating conditions without cracking under pressure. A standardised G1/4 port makes this unit widely compatible with other pneumatic components.

Features & Benefits

• Locking manual override allows for operator intervention in emergencies
• Light 330g weight doesn't add excess load to your setup
• Operating pressure range between 2 and 10 bar for versatile use
• High flow rate of 1300L/min is ideal for demanding applications
• Maintenance-free operation saves you time and effort

Applications

• Automotive manufacturing
• Pharmaceutical and medical industries
• Cooling lines

Does this pneumatic solenoid valve operate in hot settings?

Yes. This device performs reliably in a temperature range between -10°C and +50°C, so it handles the demands of industrial environments.

What media can I use with this component?

You can use it with filtered lubricated and non-lubricated compressed air, depending on the needs of your system.
