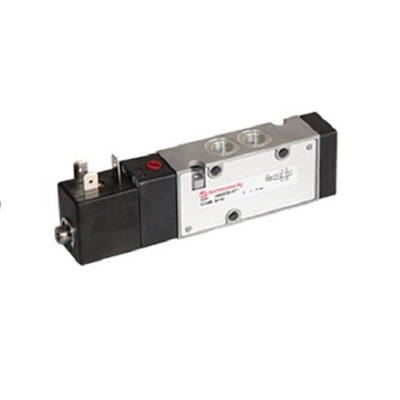

Norgren 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 V61 Series, V61B517A-A213J

IMI Norgren Pneumatic Solenoid Valve, 1,300 L/Min Flow Rate, Inline Mounting - V61 Series - V61B517A-A213J

Achieve accurate flow control in your pressurised system with this pneumatic solenoid valve from IMI Norgren. It directs or blocks the flow of compressed air to actuate components and support reliable performance. You can assemble the unit quickly and easily thanks to its manifold system and inline mounting capability. When used with a sealed plug, it has an IP65 rating, so is dust-tight and protected against low-pressure water jets. As the valve's sealed, it's a maintenance-free option.

Features & Benefits

• Tough die-cast aluminium alloy housing is rustproof for an extended the service life
• NBR and FPM seals ensure that the unit is airtight for optimal performance
• Broad operating temperature range between -10°C and +50°C for use in harsh conditions
• 100% continuous duty to support extensive switching cycles

Applications

• Industrial pneumatic tools
• Automated doors
• Healthcare industry

How do I choose the right pneumatic solenoid valve?

You should ensure the valve's rated flow meets the downstream process needs of your equipment. This relates to the port size of the component. Also, check the number of ports and possible positions. Match the operating pressures and consider the operating temperatures that are required.

Datasheet - V61B517A-A213J
