X3343802, Norgren 5/3 Mechanical Valve X334 Series, G 1/8, 1/8, III B

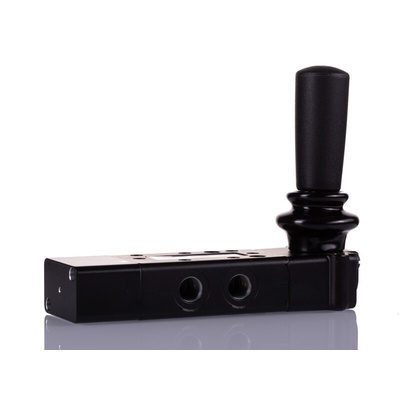

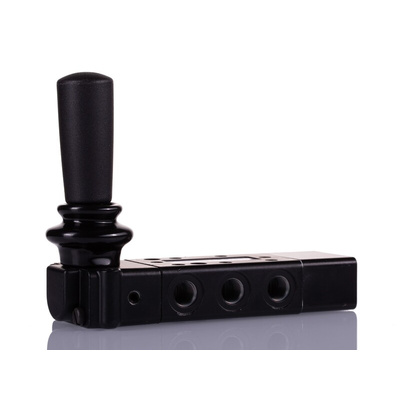

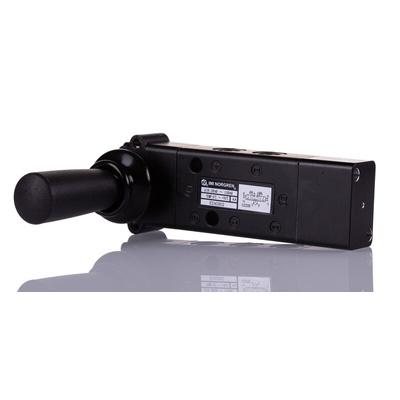

IMI Norgren Mechanical Valve, Lever and Spring Actuated, 335L/min Flow Rate - X334 Series - X3343802

Use this IMI Norgren mechanical valve to channel air to cylinders in your pneumatic systems. It has a durable zinc body that can withstand corrosion and impact, making it suitable for use in harsh environments. With a lever actuator and 5/3-way construction, the unit is useful for multi-directional flow. Thanks to a narrow 21mm width, you can install it in setups with limited space. Nitrile rubber seals block out contaminants and prevent air leakages, so you can be sure of optimal performance.

Features & Benefits

• Wide operating temperature range of 0°C to +70°C for use in challenging conditions
• Panel mounting is simple and doesn't need complex tools
• Can be operated using both lubricated and non-lubricated air for versatility

Applications

• Agricultural equipment
• Automotive industry

What's the operating pressure range of this valve?

This valve functions in a pressure range of 0 to 10 bar, making it suitable for use in both light-duty and heavy-duty applications.

Can I use damp compressed air for this valve?

No, the air supply must be dry to prevent the formation of ice at temperatures below +2°C, which may cause blockages.

Datasheet - X3343802
