X3367802, Norgren Lever 5/3 Mechanical Valve X336 Series, G 1/4, 1/4, 3367802

IMI Norgren Mechanical Valve, 1.06kg Weight, 15N Operating Force - X336 Series - X3367802

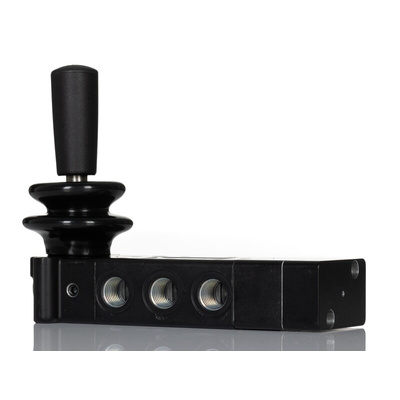

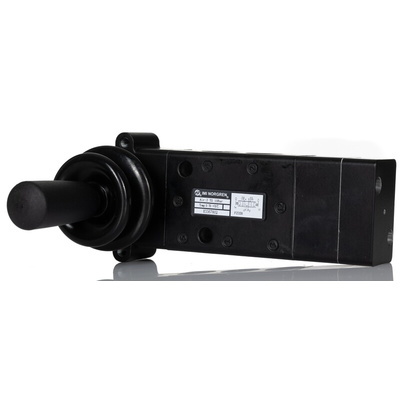

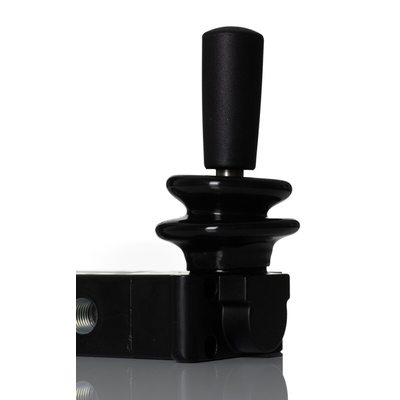

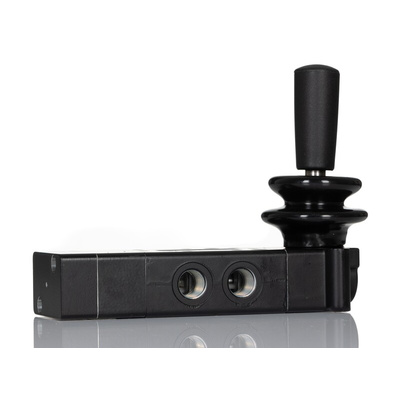

Stay on top of manual tasks in your pneumatic system with this mechanical valve from IMI Norgren. It's a lever-controlled device with a 5/3 configuration, which means that it has five ports and three positions. This makes it a handy workmate to control the forward and backward movement of double-acting cylinders. The unit is built for long-lasting performance, with a die-cast zinc body to handle corrosion and impact. To keep things running like clockwork, its NBR seals are on hand to block air leakages and prevent contamination of the supply.

Features & Benefits

• Performs reliably in temperatures ranging between 0°C and +70°C, making it a safe choice for demanding conditions
• Handles operating pressure between -0.9 and 10 bar so it's a versatile option
• Delivers 15N of force, so it's the right choice for light-duty operations
• Light weight of 1.06kg means it won't put a strain on your setup

Applications

• Automotive engineering
• Machine tools
• Marine industry

How do I mount this mechanical valve?

To mount this product, simply fasten it to your system using a wrench. Its standard G1/4 ports make this a simple process.
