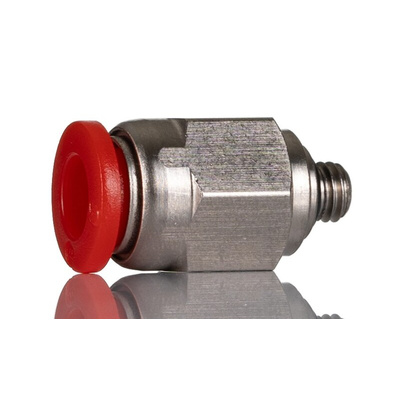

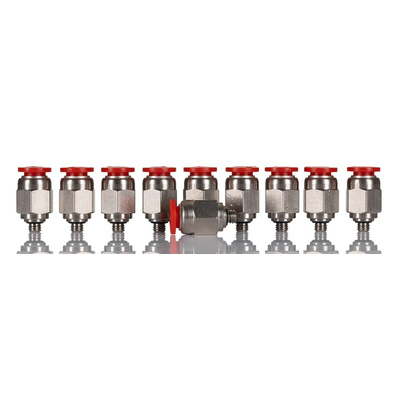

C02250605, Norgren Pneufit C Series Straight Threaded Adaptor, M5 Male to Push In 6 mm, Threaded-to-Tube Connection Style, C0225

IMI Norgren Pneumatic Fitting, Straight Adaptor Type, Nickel-Plated Brass Housing - PNEUFIT C Series - C02250605

Need to connect your air tubes in a jiffy? This pneumatic fitting from IMI Norgren does the job, while optimising flow too. A standard straight threaded-to-tube connection style makes it easy to use. Simply push the fitting right into your hose or tube – no tools needed. It's also easy to remove, thanks to a quick-release stainless steel ring. Nickel-plated brass housing makes this component suitable for humid operating environments, as it resists corrosion. A nitrile rubber seal blocks potential contaminants to support long-term performance without a glitch.

Features & Benefits

• Safe to use with nylon and polyurethane tubes for versatility
• Performs in high-pressure pneumatic systems, thanks to a wide operating pressure of -0.9 to 10 bar
• Pre-applied thread sealant ensures a speedy and secure connection
• Operating temperature range between -20°C and +60°C for use in demanding conditions

Applications

• Automated assembly lines
• Textile industry
• Packaging facilities

What size is this pneumatic fitting?

The component is just 23.5mm long, with a 6mm push-in connector at one end and an M5 connector at the other. This makes it widely compatible with other parts and ideal for compact setups.

Datasheet - C02250605
