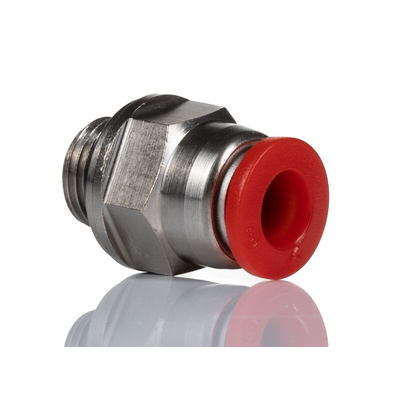

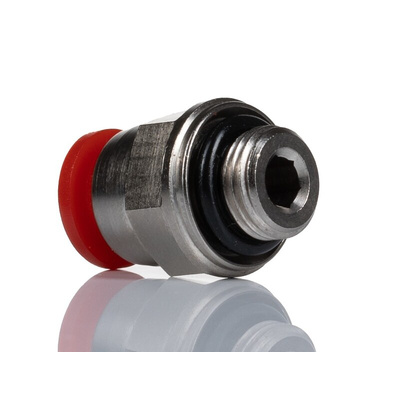

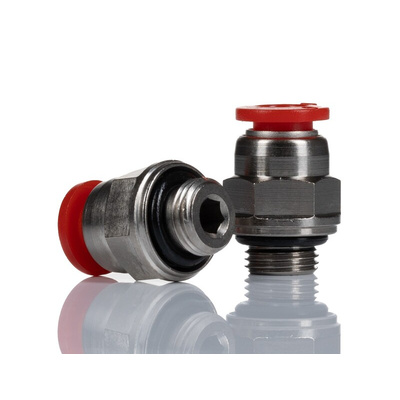

Norgren Pneufit C Series Straight Fitting, G 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, C02250618

IMI Norgren Pneumatic Fitting, -0.9 to 10 Bar Operating Pressure, Straight Body Orientation - Pneufit C Series - C02250618

Need to keep your compressed air system from running out of puff? Choose this pneumatic fitting from IMI Norgren. Thanks to its corrosion-resistant NBR seals, there's no need for additional sealants or adhesives to create a secure, leak-proof bond. Thanks to a G1/8 male connector on one end and a 6mm push-in connector on the other, you can attach components to a tube in a snap. It's a versatile option thanks to its wide operating pressure range between -0.9 and 10 bar. You can install this device by hand or with a spanner, so set-up is easy as can be.

Features & Benefits

• Nickel-plated brass body for resistance to corrosion and wear
• Features a grab-ring to help with assembly
• Light weight of 42g to put minimal strain on your equipment

Applications

• Mining and minerals processing
• Cooling lines
• Medical and pharmaceutical equipment

Can I use this fitting in extreme temperatures?

Yes. This unit has a broad operating temperature range between 0°C and +60°C, so it's suitable for use in demanding environments.

Datasheet - C02250618

Catalogue - Industrial Automation
