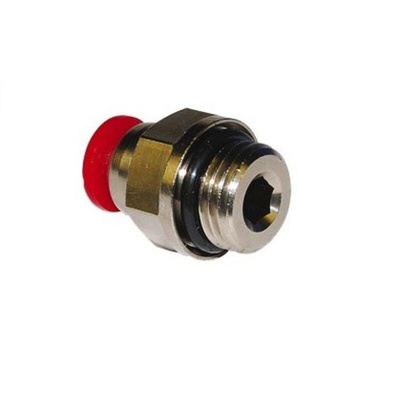

C02250818, Norgren Pneufit C Series Straight Fitting, G 1/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style

Norgren Pneufit C Fitting, G 1/8 Male to Push In 8 mm, Threaded To Tube Connection Style - C02250818

This is a ready-to-use manifold union from the Pneufit® C fittings range. These fittings offer fast assembly without the need for tools and provide optimum flow. The union features a releasable stainless-steel grab-ring to grip nylon or polyurethane tubes (85 or 95 durometre). Its nickel-plated brass components offer corrosion and contamination resistance, resulting in an extended product life. Immediate quality sealing is achieved using a silicone-free U-packing.

Features & Benefits

• The Pneufit® C fittings are pre-assembled, allowing quick installation without any tools
• The grab-ring securely holds nylon or polyurethane tubes, ensuring leak-free connections
• These components provide excellent corrosion and contamination resistance, enhancing durability
• The design ensures efficient flow of compressed air
• The silicone-free U-packing ensures reliable sealing without delay

Applications

• Controls air flow in industrial machinery and automation
• Prevents backflow in air supply lines
• Ensures one-way air flow in tools like pneumatic cylinders and actuators

Can I use the IMI Norgren C02250818 with other tube sizes?

No, this manifold union is specifically designed for 8mm O/D tubes.

What is the operating temperature range for this union?

The ambient/media temperature range is 0°C to +60°C.

What is the recommended operating pressure?

The union operates within a pressure range of 0.2 to 10 bar.
