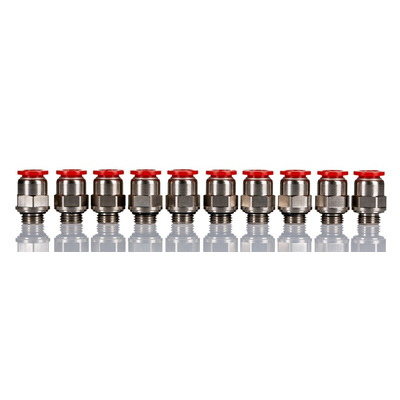

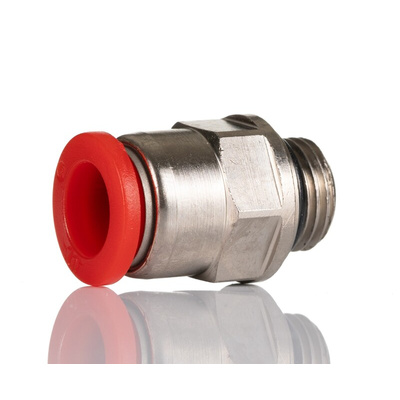

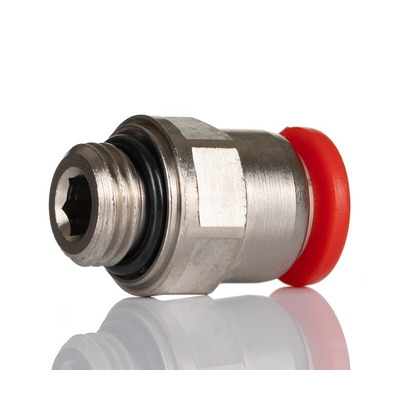

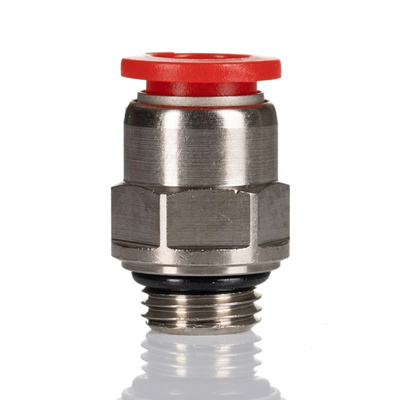

C02251028, Norgren Pneufit C Series Push-in Fitting, G 1/4 Male to Push In 10 mm, Threaded-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, -0.9 to 10 Bar Operating Pressure, For PA and PUR Tubing - PNEUFIT C Series - C02251028

Join compressed air lines in a jiffy with this pneumatic fitting from IMI Norgren. The time-saving push-in connector on one end has a built-in grab ring and collet to hold PA and PUR tubes firmly without damaging them. You just need to push your chosen tubing into the 10mm hole, so there's no need for tools. As the other end has an industry-standard G1/4 parallel thread and captive O-ring, you can count on creating leak-free seals with a couple of simple size 8 and 17 spanners. If you want to adjust this threaded side further, the unit's internal and external hex mechanism makes it a piece of cake, even in confined spaces.

Features & Benefits

• NBR seals and O-rings prevent leaks to support stable system pressure from -0.9 to 10 bar
• Hardwearing PBT plastic body resists impacts for safe use near moving parts
• Nickel-plated brass elements resist corrosion and contamination for durability

Applications

• Robotics systems
• Machine tooling
• Textile manufacture

What temperatures does this fitting tolerate?

This component handles ambient and media temperatures ranging between 0°C and +60°C, so you can trust it's a safe shout for demanding industrial applications in harsh environments.

Datasheet - C02251028

Catalogue - World - Class Motion & Fluid Control Solutions
