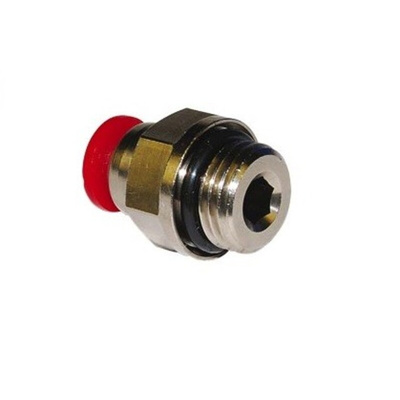

C02251038, Norgren Pneufit Series Straight Fitting, G 3/8 Male to Push In 10 mm, Threaded-to-Tube Connection Style, C0225

IMI Norgren Pneumatic Fitting, Straight Adaptor Type, -0.9 to 10 Bar Operating Pressure Range - PNEUFIT C Series - C02251038

When the job calls for a robust connection between compressed air lines, look to this pneumatic fitting from IMI Norgren. It has a straight body with a port at each end, making it a practical pick for creating linear links with PA or PUR tubing. The unit is made from nickel-plated brass for durability and corrosion resistance. One side has a standard 10mm push-in connector, making it a breeze to install without tools. A G3/8 connector on the other end is threaded to help you get a tight and leak-free seal.

Features & Benefits

• POM O-rings ensure rapid and effective sealing, keeping your media free from contamination
• Internal grab ring made of stainless steel grips tubing securely without causing damage
• Wide operating pressure range of -0.9 to 10 bar for versatility

Applications

• HVAC systems
• Pharmaceutical production
• Industrial instrumentation

What tools do I need to adjust this fitting?

You can use a size 17 spanner to adjust the external thread. Alternatively, a simple Allen key can tighten it from the inside if you're working in a limited space.

Datasheet - C02251038

Catalogue - World-Class Motion and Fluid Control Solutions
