C02470605, Norgren Pneufit C Series, Push In 6 mm to M5, Threaded-to-Tube Connection Style

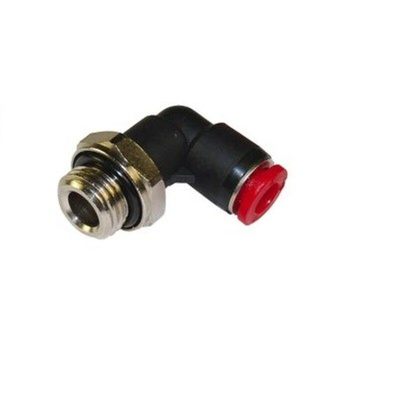

IMI Norgren Pneumatic Fitting, Elbow Adaptor, 10 Bar Maximum Operating Pressure - PNEUFIT C Series - C02470605

Securely connect your air hose to a port using this pneumatic fitting from IMI Norgren. For easy assembly, it features a threaded M5 connector on one side and a 6mm connector with a push-in design on the other. The threaded end is made from rugged nickel-plated brass, making it resistant to corrosion. Thanks to its elbow-angle design, you can use this unit in awkward corners to change the direction of airflow in your pneumatic system. A maximum operating pressure of 10 bar makes it suitable for low-pressure environments.

Features & Benefits

• PBT body is wear-resistant for an extended service life
• Ambient operating temperature range between -20°C and +60°C to withstand harsh conditions
• Tough stainless steel grab ring ensures a tight connection to the hose
• NBR seals prevent leakage and boost system performance

Applications

• Hydraulic equipment
• Water treatment facilities
• Chemical plants
• Plumbing fixtures

How do I assemble this pneumatic fitting?

To assemble this pneumatic fitting, simply insert your hose into the push-in end and continue pushing it past the O-ring until it fits securely. You can remove the hose by holding down the built-in collet, which releases it from the fitting.

Datasheet - C02470605
