C02471038, Norgren Pneufit C Series Swivel Elbow, Push In 10 mm to G 3/8 Female, Threaded-to-Tube Connection Style, Pneufit

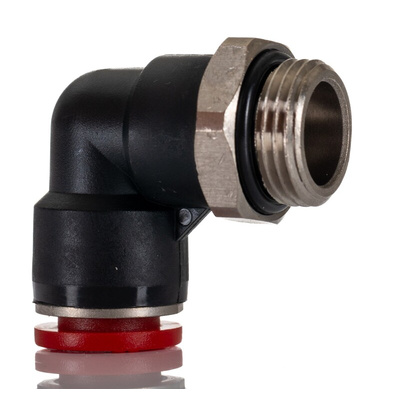

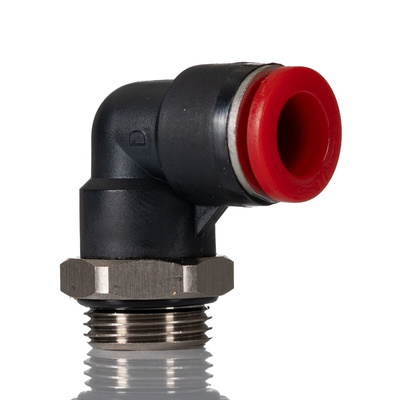

IMI Norgren Pneumatic Fitting, 90° Swivel Elbow, 10mm Connector - PNEUFIT C Series - C02471038

Connect tubes in a jiffy with the help of this pneumatic fitting from IMI Norgren. It’s ready to use right out of the box – just push your tube directly into the adapter’s O-ring to achieve a secure fit with no tools required. This ring is made from durable stainless steel for a tight grip on softer tubes. A built-in release mechanism makes for fuss-free removal. Nickel-plated brass construction makes this fitting corrosion-resistant, meaning you can count on an extended service life even in damp or humid work environments.

Features & Benefits

• Maximum operating pressure of 10 bar means it’s strong enough for demanding systems
• Wide operating temperature range between -20°C and +60°C
• U-packing and stem seals prevent leakage to ensure efficient consistent system pressure

Applications

• Cooling systems
• Automated assembly lines
• Hoisting equipment

What kind of connector does this fitting have?

This pneumatic fitting is a threaded-to-tube type with a 10mm push-in connector and a G3/8 thread.

What type of pneumatic tubes can I use with this fitting?

This fitting is compatible with nylon and polyurethane tubes. Look for a firmness level of 85 or 95 durometer.
