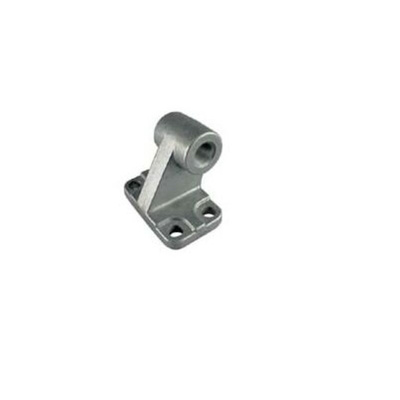

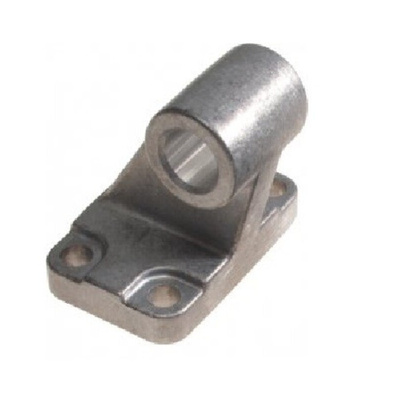

Norgren Rear Hinge M/P19494, For Use With ISO Cylinder, RA/8000, RA/8000/M

IMI Norgren Rear Hinge, 40mm Cylinder Diameter, Wide Hinge Style - M/P194 Series - M/P19494

Looking for a way to boost stability in your pneumatic setup? Reach for this rear hinge from IMI Norgren to support your equipment from the sidelines. Thanks to its sturdy base, it's a solid choice that holds things steady in high-vibration environments. You simply screw it down on a flat surface using the pre-drilled holes, so there's no need for specialist equipment to get it set up. This assembly pairs seamlessly with ISO/VDMA cylinders with a 40mm diameter, such as RS PRO's pneumatic piston rod cylinder (480-2197) or RS PRO's 100mm stroke pneumatic piston rod cylinder (480-2204).

Features & Benefits

• Hard-wearing metal material resists impacts, abrasion and mechanical stress to deliver a long service life
• Rounded edges with a smooth finish for safe handling
• Compact dimensions of 24 (H) x 54 (W) x 35mm (D), so slots neatly into tight areas

Applications

• Cooling lines
• Mining and minerals processing
• Industrial automation

How much does this component weigh?

This rear hinge only weighs 70g, so it's a lightweight choice that doesn't add unnecessary load to your setup.
