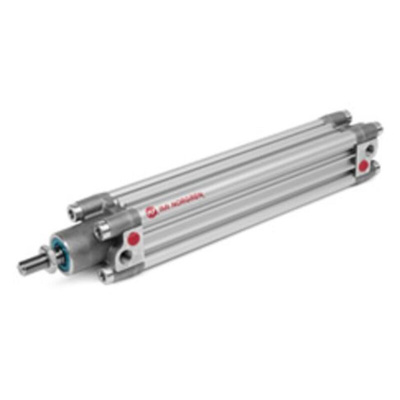

PRA/802050/M/400, Norgren Double Acting Cylinder - 802050, 50mm Bore, 400mm Stroke, PRA Series, Double Acting

IMI Norgren Double-Acting Cylinder, Cushioned, M16x1.5 Piston Rod Thread - ISOLine Series - PRA/802050/M/400

Keep products flowing through your material handling system with this double-acting cylinder from IMI Norgren. As it takes in air to push and pull the piston, its strokes are accurately measured and you get close control of positioning. Heavy objects are no problem, as the unit achieves forces up to 1,178N at 6 bar pressures to get large loads moving. Corrosion-resistant aluminium casing makes this a hardy choice for use in damp or humid workplaces. Thanks to the cylinder's self-adjusting cushioning, the rod slows down at the end of each stroke to minimise impact wear.

Features & Benefits

• M16x1.5 piston rod thread to fit with industry-standard kit
• Safe for use in a wide pressure range between 1 and 12 bar
• Built-in magnet for handy position tracking with a proximity switch
• PUR seals maintain stable system pressure for smooth running
• Top-mounted screw for easy manual cushioning adjustment in heavy-duty applications

Applications

• Process control
• Semiconductor manufacturing
• Construction industry

What types of air supply can I use this cylinder with?

This component works with clean, filtered and lubricated compressed air, so it's a versatile and widely compatible pick.
