PRA/802050/M/500, Norgren Double Acting Cylinder - 50mm Bore, 500mm Stroke, PRA Series, Double Acting

2180651
Номер производителя: PRA/802050/M/500Производитель: Norgren
Цена за шт.
63726.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

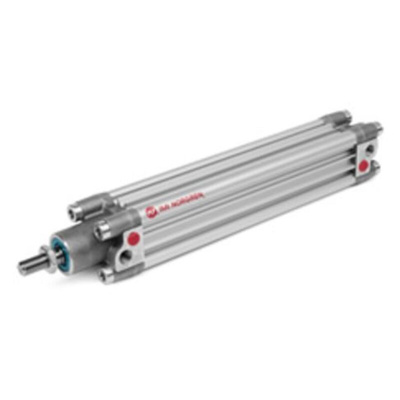

IMI Norgren Double-Acting Cylinder, Threaded Connection, -20°C to +80°C Operating Temperature Range - PRA Series - PRA/802050/M/500

For linear movement in your pneumatic equipment, opt for this double-acting cylinder from IMI Norgren. The open ports on both ends let air in and out to push the piston rod back and forth, which is ideal for positioning, clamping and ejecting tasks. This component is designed to accommodate a proximity switch (such as 218-0616) on its barrel to help keep track of the piston. Thanks to the wide operating temperature range between -20°C and +80°C, it stands up to the demands of harsh working conditions.

Features & Benefits

• Integrated cushioning system to protect piston from stress cracking
• Anodised aluminium barrel resists mechanical wear for a long service life
• Flush-mounting of a switch helps prevent accidental contact with internal components

Applications

• Medical installations
• Oil and gas industry
• Laboratories
• Construction equipment

What operating pressure capacity does this cylinder have?

This cylinder has an operating range of 1 to 12 bar for safe use in both low-pressure and high-pressure settings.

How do I mount this product?

It's quick to install by screwing the threaded end into a standard G1/4 port.

Техническая спецификация
pdfDatasheet - PRA/802050/M/500
pdfBrochure - ISO Standard Cylinders
pdfCatalogue - World-Class Motion and Fluid Control Solutions
Давление - максимальное рабочее:
10 бар
Действие:
Double
Испытательный вес:
1.09 kg
Отверстие:
50мм
Производитель - серия:
PRA
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Стандарт ISO:
15552
Ход:
500мм
