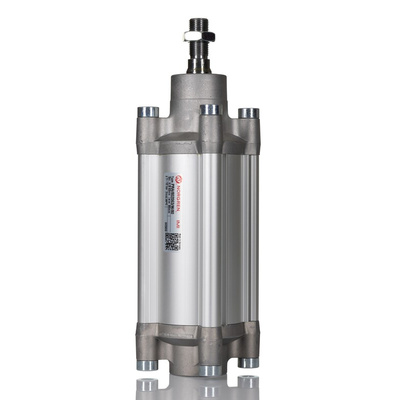

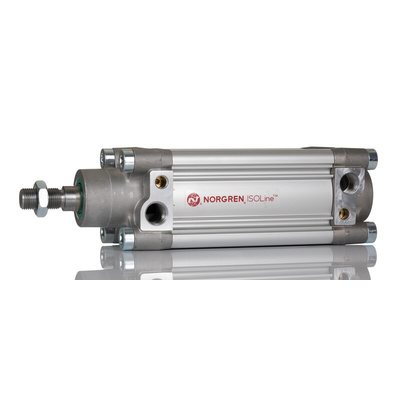

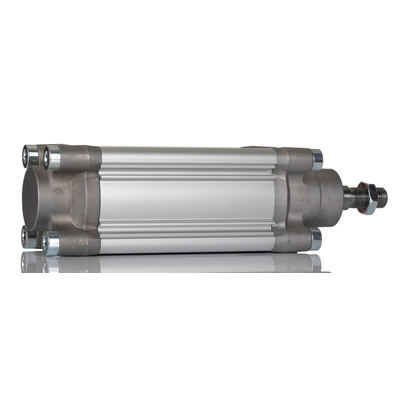

PRA/802063/M/80, Norgren Double Acting Cylinder - 802063, 63mm Bore, 80mm Stroke, PRA Series, Double Acting

IMI Norgren Double-Acting Cylinder, Magnetic, G3/8 Pneumatic Port Thread - ISOLine Series - PRA/802063/M/80

Get products rolling in the right direction with this IMI Norgren double-acting cylinder. By achieving operating forces up to 1,870N at 6 bar pressures, it makes light work of large loads. As this is a double-acting unit, it extends and retracts its piston using air, which gives you the reliable stroke control needed for positioning jobs. Linking an air supply up is a breeze, thanks to the component's regulation G3/8 port. Self-adjusting cushioning dampens impact from the rod to minimise damage from wear.

Features & Benefits

• Corrosion-resistant aluminium housing stays strong in damp environments
• Versatile option, as it works with clean, lubricated and filtered air supplies
• Screw needle to adjust cushioning for heavy-duty applications
• Airtight PUR seals maintain system pressure to ensure smooth running
• Handles challenging temperatures between -20°C and +80°C

Applications

• Manufacturing industry
• Plastic processing
• Food production

Why should I use a magnetic piston rod in my application?

A magnetic piston rod like this can be paired with a proximity switch to signal its position to a control device, making it easy to monitor your machinery's status remotely.
