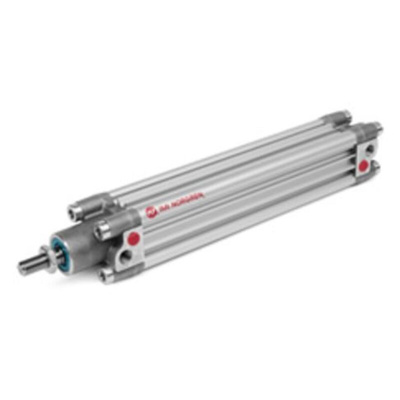

PRA/802080/M/200, Norgren Double Acting Cylinder - 80mm Bore, 200mm Stroke, PRA Series, Double Acting

IMI Norgren Double-Acting Cylinder, 1 to 12 Bar Operating Pressure, 200mm Stroke Length - PRA Series - PRA/802080/M/200

Need a pneumatic device that can pull double duty? Turn to this double-acting cylinder from IMI Norgren. It has a port at each end that allows compressed air to extend and retract the piston, giving you comprehensive control over the movement of your machinery. Adjustable cushioning eases the component to a stop at the end of its stroke, dialling down the risk of damage. Thanks to its long stroke length of 200mm, you can reach for this unit when you need your piston to extend across large distances.

Features & Benefits

• Cushioning needle adjusts with a screwdriver for ease of use
• G3/8 port size for compatibility with standard equipment
• Robust stainless steel casing for resistance to impact and corrosion
• Sealed with airtight PUR rings to stop leaks for optimal system performance

Applications

• Packing plants
• Food production
• Metalworking

Can I use this pneumatic cylinder in extreme temperatures?

Yes, this component has a wide operating temperature range between -20°C and +80°C, so it holds up under tough industrial conditions.

Datasheet - PRA/802080/M/200

Brochure - ISO Standard Cylinders
