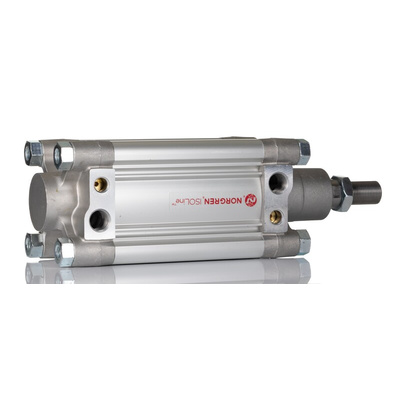

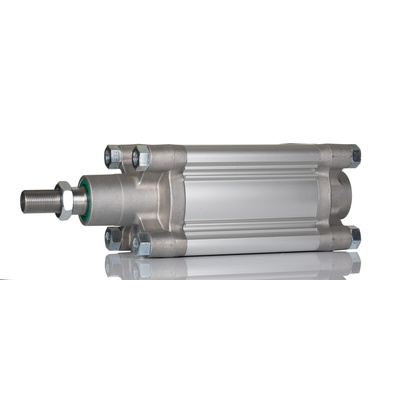

PRA/802080/M/80, Norgren Double Acting Cylinder - 80mm Bore, 80mm Stroke, PRA Series, Double Acting

IMI Norgren Double-Acting Cylinder, 1 to 12 Bar Operating Pressure Range, M20x1.5 Thread - PRA Series - PRA/802080/M/80

Drive through your handling tasks with this double-acting cylinder from IMI Norgren. It uses air to push the piston in both directions, delivering the precision and consistency your setup needs. An adaptive cushioning system automatically adjusts itself to suit your application, so the unit minimises wear and tear to keep hardware running smoothly for longer. Installation is hassle-free thanks to its regulation M20 x 1.5 piston rod thread. As the cylinder comes with a built-in magnet, it works with a proximity sensor (such as 220-3937) for easy machine monitoring.

Features & Benefits

• Works with clean, filtered and lubricated compressed air for versatility
• Stainless steel casing for effective corrosion resistance in damp areas
• Low air consumption of between 0.32 and 0.35L/cm per stroke for efficiency
• PUR rings form airtight seals, keeping system pressure steady

Applications

• Railway systems
• Agricultural machinery
• Automotive industry

Can I manually adjust the cushioning on this cylinder?

Yes, if you want to tweak the cushioning by hand, just turn the top-mounted screw. This lets you ensure the setting is spot-on for your application.
