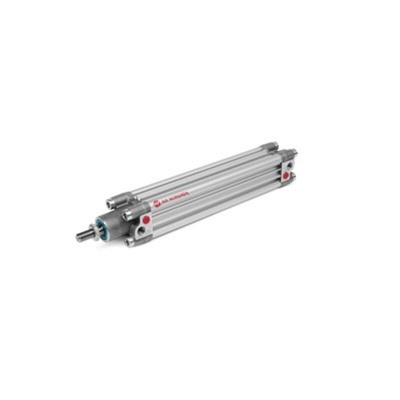

PRA/802100/M/250, Norgren Double Acting Cylinder - 100mm Bore, 250mm Stroke, PRA Series, Double Acting

2180663
Номер производителя: PRA/802100/M/250Производитель: Norgren
Цена за шт.
115463.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IMI Norgren Double-Acting Cylinder, Cushioned, G1/2 Port Size - ISOLine Series - PRA/802100/M/250

Want to get your pneumatic process moving? Put this double-acting cylinder from IMI Norgren to work. It uses the force of compressed air driving in at both ends to push the piston, generating linear motion in both directions. Robust PUR seals keep the internal components safe from contamination and prevent leakage. This cylinder has undergone tests for resistance to shock and vibration, so you can trust it holds its own in shaky situations. Mounting it takes a jiffy without using complex tools as you simply attach the threaded end to a G1/2 port.

Features & Benefits

• Double-acting function eliminates the need for manual reset mechanism
• Cushioning is adjustable to meet your system's needs
• 1 to 16 bar operating range for safe use in low-pressure and high-pressure settings
• Rugged stainless steel piston rod resists corrosion to deliver long-term performance

Applications

• Aerospace engineering
• Chemical plants
• Railways
• Storage facilities
• Automotive industry

How do I track the position of the piston?

This cylinder comes with slots in its body that are designed to accommodate a proximity sensor (such as 218-0616) that tracks the piston.

What's the operating temperature range of this cylinder?

Thanks to the wide operating temperature range of -20°C to +80°C, this cylinder withstands harsh operating conditions.

Техническая спецификация
pdfDatasheet - PRA/802100/M/250
pdfBrochure - ISO Standard Cylinders
pdfCatalogue - World-Class Motion and Fluid Control Solutions
Вес:
3.7кг
Давление - максимальное рабочее:
10 бар
Действие:
Double
Отверстие:
100мм
Пневматическое соединение:
M10
Производитель - серия:
PRA
Рабочая температура - максимальная:
+150°C
Рабочая температура - минимальная:
-40°C
Стандарт ISO:
15552
Тип демпфирования:
Регулируемый
Ход:
250мм
