PRA/802100/M/320, Norgren Double Acting Cylinder - 100mm Bore, 320mm Stroke, PRA Series, Double Acting

2180664
Номер производителя: PRA/802100/M/320Производитель: Norgren
Цена за шт.
119620.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

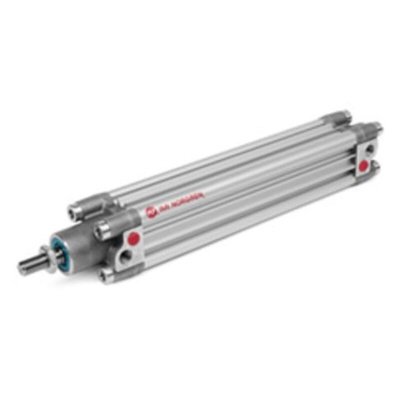

IMI Norgren Double-Acting Cylinder, Anodised Aluminium Housing, 1 to 12 Bar Operating Pressure Range - PRA Series - PRA/802100/M/320

Push workpieces in your pneumatic system in a linear direction using this double-acting cylinder from IMI Norgren. Open ports on both ends mean the unit uses airflow to move the piston rod back and forth, removing the need for spring resetting. You can mount a proximity sensor (such as 218-0612) flush on the barrel to monitor the position of the piston. As it has an operating pressure range of 1 to 12 bar, this versatile cylinder can handle the rigours of both low-pressure and high-pressure conditions.

Features & Benefits

• Built-in cushioning system to protect the piston from wear and minimise noise
• PUR seals help prevent air leakage
• Threaded connection for easy tool-free installation
• Cushioning is adjustable, so it meets the need of your setup

Applications

• Chemical plants
• Water treatment facilities
• HVAC systems
• Manufacturing industry

What's the operating temperature range of this product?

It does its job reliably in a broad operating temperature range between -20°C and +80°C, so it's well suited to challenging environments.

Is this cylinder resistant to corrosion?

Yes, it has a rugged stainless steel piston rod and hard-wearing anodised aluminium housing, so it won't corrode.

Техническая спецификация
pdfDatasheet - PRA/802100/M/320
pdfBrochure - ISO Standard Cylinders
pdfCatalogue - World-Class Motion and Fluid Control Solutions
Давление - максимальное рабочее:
10 бар
Действие:
Double
Испытательный вес:
3.66 kg
Отверстие:
100мм
Производитель - серия:
PRA
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Стандарт ISO:
15552
Тип демпфирования:
Air
Ход:
320мм
