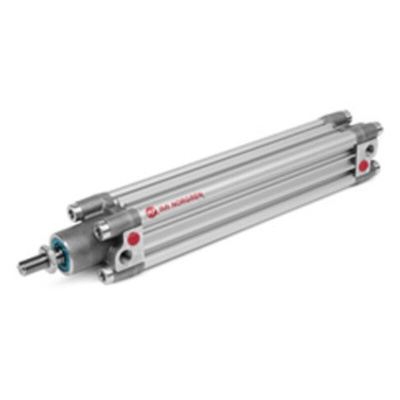

PRA/802100/M/500, Norgren Double Acting Cylinder - 100mm Bore, 500mm Stroke, PRA Series, Double Acting

IMI Norgren Double Acting Cylinder, G1/2 Port Thread, 100mm Cylinder Diameter - PRA Series - PRA/802100/M/500

Grab this double-acting cylinder from IMI Norgren to clamp, eject and position objects in your pneumatic setup. An operating pressure range between 1 and 12 bar means this versatile component is suited to many low-to-mid-pressure applications. Its PUR seals resist corrosion from industrial substances to prevent air leakage, eliminating workflow hiccups in factory settings. Smooth and silent performance is a given, thanks to the unit's built-in adaptive cushioning system, which takes the hit from impacts and reduces workplace noise.

Features & Benefits

• Compatible with filtered, lubricated and non-lubricated compressed air, for flexible use
• Generates force up to 4710N, meaning it's a powerful choice that can cope with large loads
• Switches can be flush mounted to the barrel for space-efficiency
• 500mm stroke means it's compatible with many heavy-duty applications

Applications

• Factory processing lines
• Storage facilities and warehouses
• Mining and mineral processing operations

Can I use this device in industrial conditions?

Yes. This unit operates in a broad temperature range between -20°C and +80°C, so it withstands harsh industrial environments.

Datasheet - PRA/802100/M/500
