QM/33/016/22, Norgren Switch Mounting Bracket, QM/33 Series, For Use With Magnetic Switches

IMI Norgren Mounting Bracket, 16mm Diameter, 5mm Length - QM/33 Series - QM/33/016/22

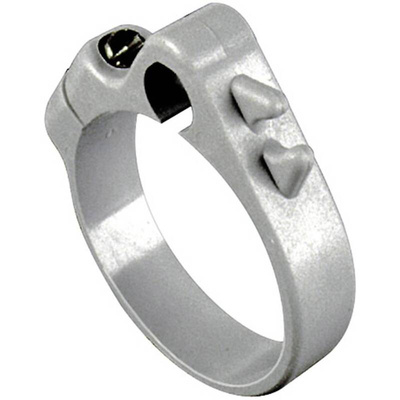

Need to securely attach a reed switch in your pneumatic system? Grab this mounting bracket from IMI Norgren. It's suitable for any 16mm cylinder with a magnetic piston, making it a versatile piece of kit. Simply clip it in place around the cylinder and tighten with a screwdriver. The reed switch then slots into the perfectly sized gap at the top. This nifty bracket is designed for use with devices from the M/50/LSU, M/50/RAC and TM/50/RAU ranges, so you can be sure of a neat fit.

Features & Benefits

• Compatible switches have a wide operating temperature range between -25°C and +80°C for use in challenging conditions
• Smooth finished edges for snag-free mounting

Applications

• Medical equipment
• Process control
• Robotics and automation systems

What's a reed switch used for?

A reed switch is actuated by magnetism. When you fix one or more to the outside of a pneumatic cylinder with a magnetic piston, the switch can offer real-time information about the location of the piston. This is useful for providing safety feedback or input to a PLC, or as part of a sequencing operation with other electronic control valves.

Datasheet - QM/33/016/22

Catalogue - Industrial Automation
