QM/33/025/22, Norgren Switch Mounting Bracket, QM/33 Series, For Use With Magnetic Switches

IMI Norgren Mounting Bracket, 25mm Cylinder Diameter - QM/33 Series - QM/33/025/22

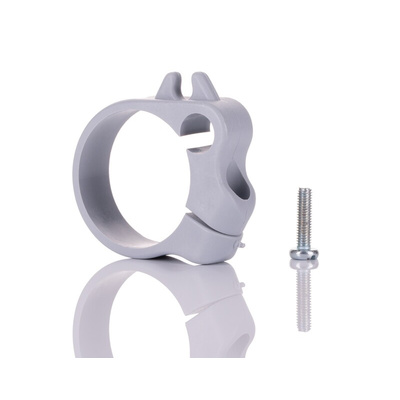

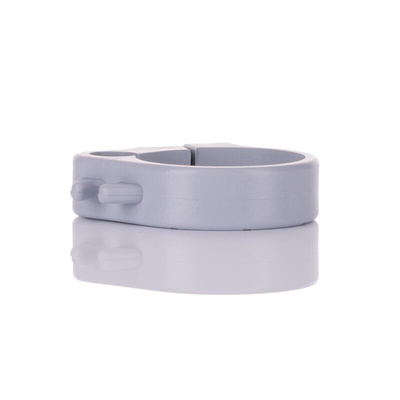

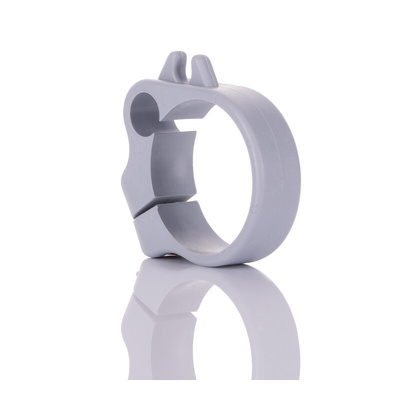

Choose this mounting bracket from IMI Norgren to install your magnetic switch to a pneumatic cylinder. It keeps the reed switch stable so it can effectively monitor the position of your cylinder. As it's designed for use with magnetic switches, you can use it with pneumatic cylinders that come with a built-in magnetic piston rod. This bracket has a compact cylinder diameter of 25mm, which makes it suitable for use with small equipment.

Features & Benefits

• Broad operating temperature range between -25°C and +80°C to withstand harsh environments
• Light weight of 25g, so it won't add bulk to the cylinder

Applications

• Elevators
• Packaging facilities
• Automotive industry
• Construction equipment

How does a magnetic switch work?

A magnetic switch tracks the magnetic field that's produced by the piston rod inside a pneumatic cylinder. This lets it determine the cylinder position to notify the control unit for smooth operation. Magnetic switches from IMI Norgren typically come with a cable for ease of connection to the control system. They also feature LED indicators for quick configuration of their operating status.

Datasheet - QM/33/025/22
