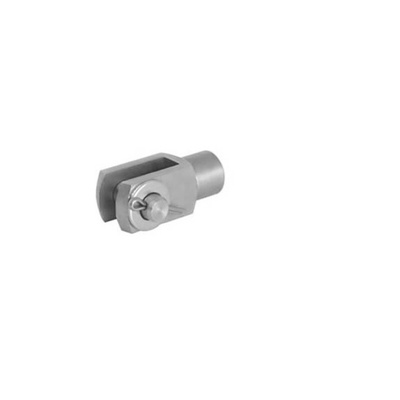

Norgren Piston Rod Clevis QM/8025/25, For Use With RM/8000/M

IMI Norgren, Piston Rod Clevis, 0.1kg Weight, 25mm Diameter - QM/8025 Series - QM/8025/25

Seeking support for your pneumatic cylinder? Choose this piston rod clevis from IMI Norgren. It's used to fasten a pneumatic piston to a mounting surface, allowing your equipment to support linear motion while standing firm. The unit's designed to work hand-in-hand with both lubricated and non-lubricated air systems, making it a versatile anchor for many setups. Once assembled, this small but mighty device stays strong even under 10 bar of pressure, so it's an essential gadget for heavy-duty applications.

Features & Benefits

• Standard M10 x 1.25mm thread simplifies installation
• Light weight of 0.1kg for a stress-free fitting that won't place too much strain on your system

Applications

• Materials handling facilities
• Construction machinery
• Agricultural equipment
• Manufacturing industry

How do I install this component?

Installing this unit is a piece of cake. Start by removing the pin. Next, align the holes in your piston rod with the ones in the clevis. The final step is to return the pin to lock the connection in place.

Which cylinders does this clevis work with?

You can use this accessory with roundline cylinders from the RM/8025/M range (such as 510-8957).

QM/8025/25 Datasheet
