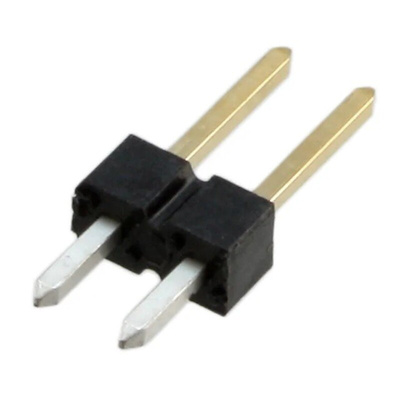

77311-818-02LF, Amphenol Communications Solutions BergStik Series Vertical Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1

The Amphenol FCI BergStik 2.54mm unshrouded headers are available in surface-mount (SMT), through-hole (THT), press-fit, stacking and pin-in-paste (PIP) versions. Designed in single and double row. They are available in straight or right angle options, from 2 to 72 positions featuring a “breakaway” design, each connector can be cut or broken to length to suit the application profile. The maximum current rating is 3A per contact. This product range is extended with BergStik 2.54mm unshrouded vertical headers in 0.25μm plating, available in standard sizes. It offers an economical solution for various applications. It is also specified up to 100 mating cycles. BergStik product range provides Board-to-Board, Wire to-Board and Cable-to-Board interconnect solutions for all electronic equipment and devices.

Allow dual entry
mating from top or bottom
Suitable for mezzanine application and gives more flexibility in meeting different stack height requirements
Can be used for wire wrapping
Allows cleaning to remove soldering contamination
Duplex plating
Tin-lead plating in press-fit area
Easy pin insertion onto PCB
Retention legs option
High retention force onto PCB

Datasheet - 77311-818-02LF
