Crydom PCV Series Proportional Power Controllers

Proportional power controllers in the SSR industry standard rectangular "hockey puck" package. Using a simple 2-10Vd.c. power source, voltages of up to 240Va.c. and currents of up to 40A are able to be easily and efficiently controlled. Typical applications include; resistive heating elements, rectified d.c. motors, industrial temperature control, conveyor speed control, light dimming, infrared and quartz heaters.

Internal snubbers as standard
Control circuit requires no calibration
2-10Vd.c. logic compatible input

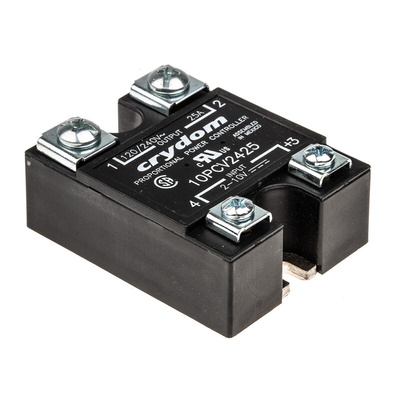

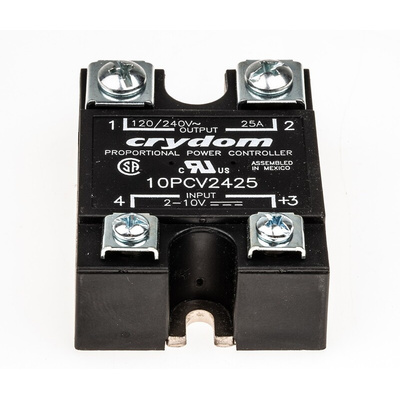

Sensata | Crydom Solid-State Relay, 25A Current Rating, 2 to 10V DC Control Voltage - PCV Series - 10PCV2425

This solid-state relay from Sensata | Crydom gives you precise control over your industrial appliances. It uses fast-acting optical signals to adjust its output voltages, ensuring you get quick switching. A broad operating voltage range of 100 to 240V AC means it's compatible with a wide variety of low-power systems. Its light weight of just 100g means it will place minimal strain on your equipment. You can use SSRs like this one in automated machinery, lighting dimmer systems and temperature controllers.

• Solid-state design means there are no moving parts for minimal wear and a long service life
• Surge current rating of 250A to withstand sudden electrical spikes for enhanced safety
• Compact dimensions of 45.7 (L) x 23 (W) x 58.4mm (H) for mounting in areas where space is limited
• Wide operating temperature range between -30°C and +80°C for use in demanding environments

How do I mount thisSSR?

You can mount this unit directly onto a panel for ease of installation.

Crydom Solid State Relay and Accessories

Series PCV Analog Input Power Controller Data Sheet

Declaration of Conformity 2014/35/EU
