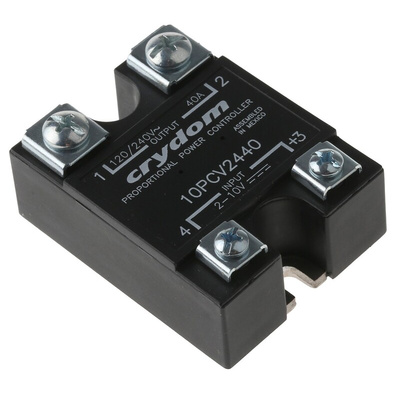

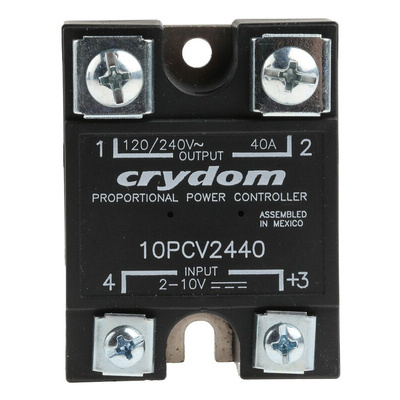

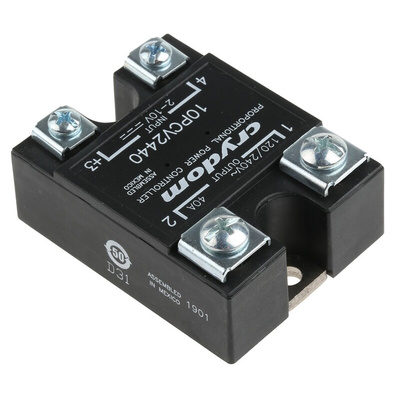

10PCV2440, Sensata / Crydom PCV Series Solid State Relay, 40 A rms Load, PCB Mount, 240 V ac Load, 10 V dc Control, Реле

Sensata | Crydom Solid-State Relay, SCR Output, 8ms Turn-On Time - PCV Series - 10PCV2440

Take your switching to the next level with this solid-state relay from Sensata | Crydom. As it has no moving parts, there's no need to worry about wear and tear. A load current of 40A means this relay is just the thing for use in heavy-duty applications. Its wide operating temperature range of -30°C to +80°C means it can handle the heat in harsh environments. You can use this SSR in applications ranging from light dimming to conveyor belt and heating controls.

Features & Benefits

• Light weight of 100g to place minimal strain on your setup
• Thermally conductive epoxy encapsulation for protection against heat build-up
• Wide operating voltage range of 100 to 240V AC for compatibility with low-voltage systems
• Compact dimensions of 45.7 (L) x 23 (W) x 58.4mm (H) for installation in tight spaces

How does an SSR work?

An SSR like this one uses semiconductor switching elements, such as thyristors, triacs, diodes and transistors, to control on/off signals, currents or voltages. This means they're more reliable and last longer than electromechanical relays.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU
