A53TP25D, Sensata / Crydom 53TP Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control, Реле

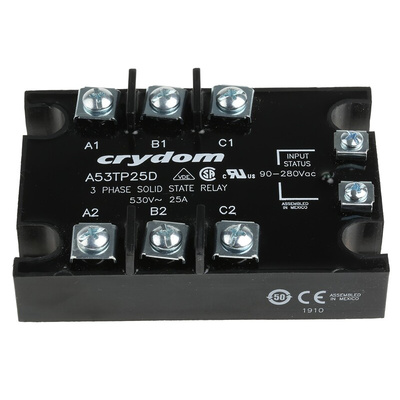

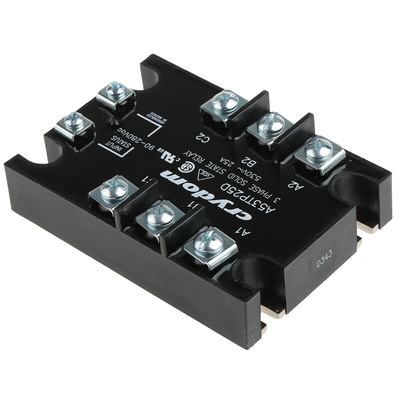

Sensata | Crydom Solid-State Relay, SCR Output, 3 Phases - 53TP Series - A53TP25D

Looking for a reliable partner to help manage your industrial motors? Take a weight off your shoulders and switch to this three-phase solid-state relay from Sensata | Crydom. It has an SCR output, which means it's just the thing for switching heavy-duty loads. Built-in transient voltage protection prevents power spikes from causing damage. An LED indicator makes checking your input status a doddle. Use this SSR to control heating, lighting and motion control systems.

• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• Compact dimensions of 103.8 (L) x 73.4 (W) x 30mm (H) to save space on your panel
• Screw-clamp terminals ensure secure wiring

What's the advantage of zero-cross switching?

Zero-cross switching means that the relay turns on when the voltage is close to zero. This helps to minimise noise and inrush currents in sensitive applications.

How dependable is this relay?

As it's a solid-state type, it has no moving mechanical parts. This helps to minimise the risk of wear, so you can count on it for long-lasting performance.

Approvals

UL; C-UL Recognised; VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

MTBF Information

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

Line Drawing - 53TP SERIES
