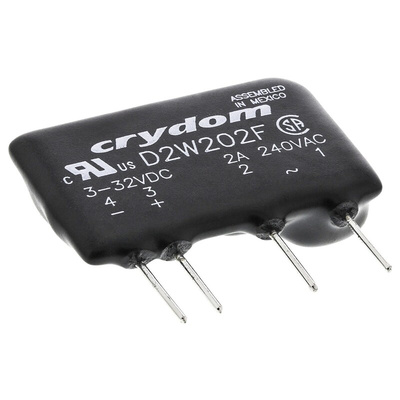

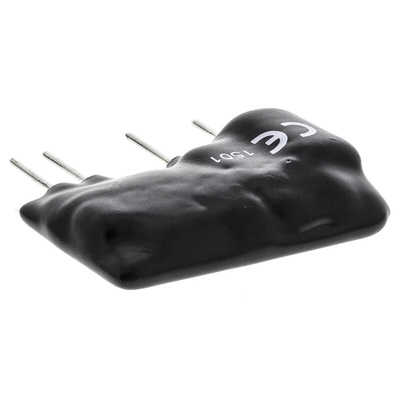

D2W202F, Sensata / Crydom D2W Series Solid State Relay, 2 A Load, PCB Mount, 280 V Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 0.06 to 2A Load Current Range, PCB Mounting - D2W Series - D2W202F

This solid-state relay from Sensata | Crydom reliably switches an electrical circuit without moving a muscle. Its lack of mechanical parts gives you the benefit of an extended service life, as there's little chance of wear and tear bringing it to an abrupt halt. An isolation voltage of 4000Vrms helps to protect you against electric shock and stops power surges from damaging equipment. A wide operating voltage range of 24 to 280V AC means it's just the thing for low-voltage applications. Choose a relay like this one to switch industrial lighting systems on and off.

Features & Benefits

• Compact dimensions of 43.2 (L) x 11.9 (W) x 29.9mm (H) for installation in tight spaces
• Turn-on and turn-off time of half a cycle for rapid switching
• Encapsulated in thermally conductive epoxy for effective heat dissipation
• Wide operating temperature range between -30°C and +80°C for use in demanding environments

Where do I mount this SSR?

This relay is designed for mounting onto a PCB and includes solder pins for a secure connection.

Approvals

UL; CSA

Caution
type":"Caution",

Derating will limit the maximum load current at temperatures above 25°C

D2W Series Data Sheet

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950
