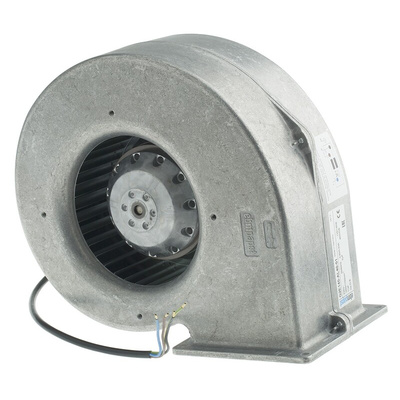

ebm-papst Centrifugal Fan
The ebm-papst single inlet centrifugal fan has an airflow of 355m³/h (for 50Hz) at a fan speed of 2095rpm and has a supply voltage rating of 230VAC. It has a high-performance fan motor blower with an external rotor motor. This is integrated within the impeller that reduces installation dimensions. It is constructed from die-cast aluminium, ebm-papst blowers are a rugged and long life. It is 247mm long, 226mm wide and 130mm deep.
Features and Benefits
The speed of these centrifugal fans, when equipped with an external rotor, can be adjusted by reducing the supply voltage using a variable speed controller
The impeller is crimped straight onto the rotor
Sealed for life
Maintenance free
Class B insulation
Variable speed controllers are also available
Thermal protection by thermocontact and windings
Impeller is forward curved multi-vane type
Scroll die-cast with motor capacitor, mounting flange and finger guard/filter fixings
Ball bearing type, may be mounted in any position
Applications
Industrial use
Central air conditioning units or building ventilation systems
Automobile
Certifications
CE certified
CCC certified
GOST certified
IP44 rated
EN 60335-1
G2E140-AL40-01 AC Centrifugal Fan Data SheetG2E140-AL40-01 Operating instructions| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
