RS PRO, Plug Cable Mount UHF Connector, 50Ω, Cable Termination, Straight Body

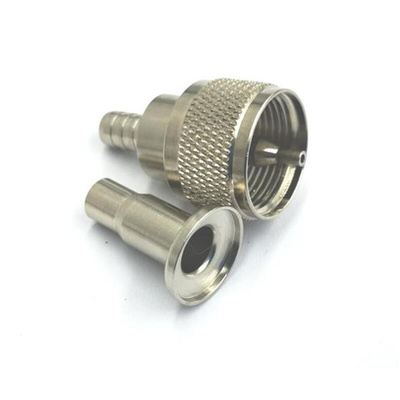

RS PRO 50Ω Straight Cable Mount UHF Connector

When it comes to UHF, RF connectors look no further than RS PRO. Here we are proud to introduce this high-quality straight UHF connector commonly used in conjunction with RG58 coaxial cables for high-quality RF signals and data transmission. Upon inspection, this male coaxial connector offers a nickel body plating, brass contact with nickel plating and Teflon coating. This UHF connector has an operating frequency of 300 MHz, characteristic impedance of 50 Ω, with a working voltage of 500 V.

Why would you choose this UHF connector?

The RS PRO UHF connector is the ideal solution for carrying out repairs or creating custom RG58 coaxial cables. Installation is quick and easy and can be carried out by professionals or DIY enthusiasts.

Features and Benefits

• Straight-body


• Male UHF connector


• Cable mounting


• Features a screw-on coupling mechanism for secure connections


• Compatible with RG58 cables

General Specification

• Body Plating: Nickel


• Bulkhead: Yes


• Contact Material: Brass


• Contact Plating: Nickel


• Gender: Male


• Cable installation

Electrical Specification

• Temperature Range: -55°∼+85° C


• Characteristic Impedance: 50Ω


• Frequency Range: 300MHz


• Working Voltage: 500 V


• Insulation Resistance: ≥ 1000 MΩ


• Medium Pressure: 1000V (rms)


• VSWR ≤1.3


• Working Life: 500 Cycles

Things to consider!

• For the best possible union between connectors and cables look no further than the RS PRO BNC, UHF crimp tool: RS stock no: 456-447

Applications

• RF Signalling Projects


• Antenna


• Wireless communication

Approvals

CE, ROHS

RS PRO Datasheet
