RS PRO, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Vertical Body

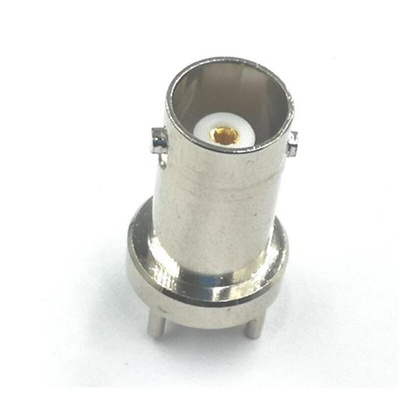

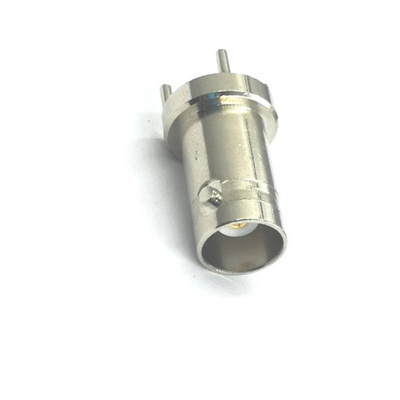

RS PRO Straight PCB Mount BNC Connector

The RS PRO range of coaxial connectors continues to improve, and we are proud to introduce this straight PCB mount BNC connector. A 50 Ω female RF connector made with high-quality materials such as nickel body plating, brass contact, and gold plating. This BNC connector incorporates a convenient bayonet that enables safe coupling to male BNC connectors. The centre pin contacts are gold-plated for the best electrical conductivity and there’s Teflon insulation for reliability and long life.

Where would you find this type of RF connector?

BNC connectors can be found in a variety of RF signal applications, used in conjunction with coaxial cables other RF connectors. The most common applications are radio and television, for Antenna connection, Cable Modems, and CCTV as well as medical and test equipment.

Features and Benefits

• Female BNC Connector


• PCB Mounting


• Body Plating Nickel


• Contact Material Brass


• Contact Plating Gold


• Solder Termination


• Insulation material: Teflon

Electrical Specification

• Temperature Range -65°C ∼+165°C


• Characteristic Impedance 50Ω


• Frequency Range 0∼4GHz


• Working Voltage 500V


• Insulation Resistance ≥1000MΩ


• Medium Pressure 1000V(rms)


• VSWR ≤1.5 Working Life 500 Cycles

Things to consider!

Having good quality products to carry out a new install should always be a priority. Consider these RS PRO products for soldering/de-soldering applications.

• RS PRO SAC305 Lead-Free Solder; RS stock no: 756-8884


• RS PRO 200ml Solder Flux Aerosol Can; RS stock no: 494-764


• RS PRO Soldering Station; RS stock no: 799-8941

Applications

• Antenna connection


• Cable Modems


• Telecom


• Medical Equipment


• Computers


• CCTV
