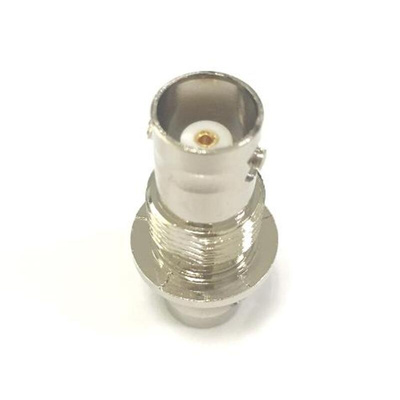

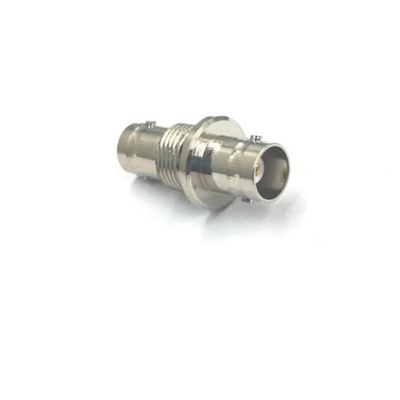

RS PRO Straight 50Ω Coaxial Adapter BNC Socket to BNC Socket 4GHz

RS PRO Coaxial Adapter - BNC Socket to BNC Socket

RS PRO are please to introduce this high-quality coaxial adapter, a welcome addition to your coaxial connectors and RF equipment. This jack-to jack adapter is durable, Teflon insulated, and designed with female BNC sockets. This type of connector is panel mounted and includes a retaining nut and washer for quick & easy installation, plus it utilises a bayonet fixing for secure coaxial cable connection.

Why would you choose this coaxial adapter?

This coaxial adapter is an essential accessory when it comes to custom-made signal units. This straight 50Ω BNC jack-to-jack coupler is made from quality materials that include nickel-plated body, brass contact, and gold plating. The frequency range of 4 GHz and a working voltage of 500 V make it perfect for all your video signalling and test equipment applications.

Why is quality important?

Not all connectors and adapters and created equal. An RF signal is only as good as the cable, wire, and connectors it passes through. Using quality components like this coaxial adapter, coupled with the right high-quality coaxial cable and connector will ensure you are getting the best possible signal for your application.

Features and benefits

• Coaxial adapter: Straight


• BNC Female coaxial


• Contact Material: Brass, Gold plated


• Body Plating: Nickel


• Teflon Insulated


• Impedance: 50 ohms


• Frequency range: 4 GHz

Specification

• Type of connector: BNC socket to BNC socket


• Adapter A & B: BNC


• Gender A & B: Female


• Working voltage: 500 V


• Operating temperature range of -65°C to +165°C


• Working Life Cycle: 500 cycles

Things to consider!

Browse the RS PRO range of RF coaxial connectors & adapters for your ideal solution. Our improved filter system means you are sure to find the right products to complete your install.

Applications

Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;

• Test and measurement


• Communication systems


• Antennas


• Broadcast


• Audio and video
