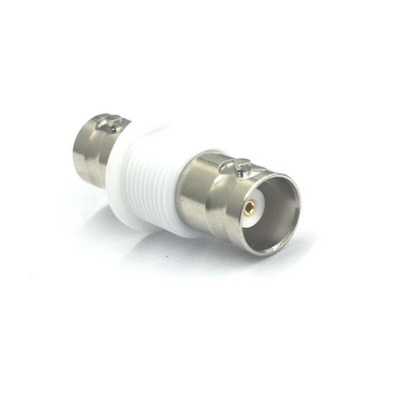

RS PRO Straight 50Ω Coaxial Adapter BNC Socket to BNC Socket 4GHz

RS PRO Coaxial Adapter - BNC Socket to BNC Socket

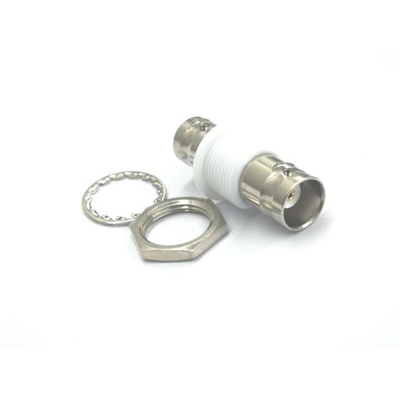

RS PRO is proud to introduce this high-quality coaxial adapter. This baffle jack-to jack adapter is extremely durable, polyoxymethylene insulated and offers female BNC sockets at either end. This type of connector should be panel mounted and includes a retaining nut and washer for quick and easy installation.

Why would you choose this coaxial adapter?

Coaxial adapters are essential accessories for custom signal units. This straight 50Ω BNC jack-to-jack coupler is made from quality materials that include nickel-plated body, brass contact, and gold plating. It offers a working voltage of 500 V with a 4 GHz frequency range, perfect for all your video signalling and test equipment applications.

Why is quality important?

Not all connectors and adapters and created equal. An RF signal is only as good as the cable, wire, and connectors it passes through. Using quality components like this coaxial adapter, coupled with the right high-quality coaxial cable and connector will ensure you are getting the best possible signal for your application.

Features and benefits

• Coaxial adapter: Straight


• BNC Female coaxial


• Contact Material: Brass, Gold plated


• Body Plating: Nickel


• Polyoxymethylene Insulated


• Impedance: 50 Ω


• Frequency range: 4 GHz

Specification

• Type of connector: BNC socket to BNC socket


• Adapter A & B: BNC


• Gender A & B: Female


• Working voltage: 500 V


• Operating temperature range of -45°C to +165°C


• Working Life Cycle: 500 cycles

Things to consider!

Browse the RS PRO range of RF coaxial connectors & adapters for your ideal solution. Our improved filter system means you are sure to find the right products to complete your install.

Applications

Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;

• Test and measurement


• Communication systems


• Antennas


• Broadcast


• Audio and video
