Coaxial Connector Type, RS PRO 50Ω Straight Panel Mount, BNC Connector , Bulkhead Fitting, jack, Coaxial

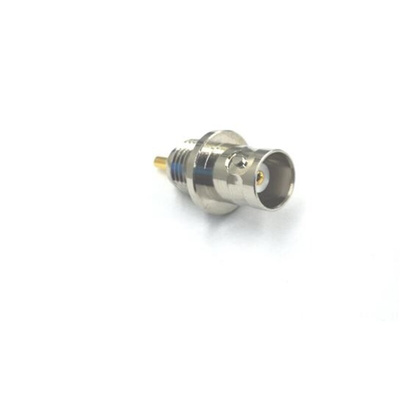

RS PRO Panel Mount BNC Connector
The RS PRO range of coaxial connectors continues to improve, and we are proud to introduce this bulkhead fitting BNC panel mount connector. A 50 Ω female RF connector made with high-quality materials such as nickel body plating, brass contact, and gold plating.
Why would you choose this RF connector?
This connector has a BNC fitting at one end and a gold-plated solder pin on the other. During application, this RF connector will filter input signals and reduce interference. It also incorporates a convenient bayonet that enables safe coupling to a male BNC cable assembly. To complete the install a grounding tab, locking washer, and nut are included.
Features and Benefits
ulliFemale BNC Connector/liliPanel Mount/liliBody Plating Nickel /liliContact Material Brass /liliContact Plating Gold /liliGrounding tab/liliLocking washer and nut/liliSolder Termination/liliInsulation material: Teflon/li/ul
Electrical Specification
ulliTemperature Range -65°C ∼+165°C/liliCharacteristic Impedance 50Ω /liliFrequency Range 0∼4GHz /liliWorking Voltage 500V /liliInsulation Resistance ≥1000MΩ /liliMedium Pressure 1000V(rms) /liliVSWR ≤1.5 /liliWorking Life 500 Cycles/li/ul
You may also need.
When it comes to coaxial connectors and coaxial cables, RS PRO has you covered. Browse our extensive range using the improved filter system to find your ideal solution.
Things to consider.
Having good quality products to carry out a new install should always be a priority. Consider the RS PRO Soldering Station 90W, 220V for soldering/de-soldering applications. RS stock no: a href=\"/web/p/products/7998941\""799-8941/a
Applications
ulliTest \u0026 Measure Equipment/liliRF Signalling/liliAntenna/liliCoaxial cable installation/li/ul
CE, ROHS
