Gender, RS PRO 50Ω Vertical Panel Mount, BNC Connector , Bulkhead Fitting, jack, Coaxial

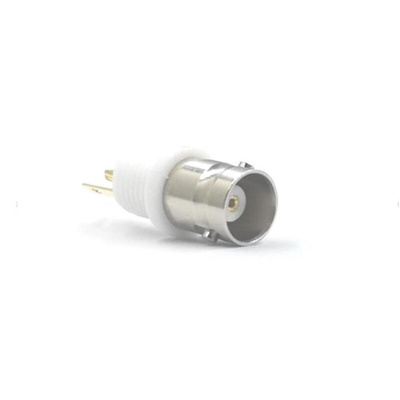

RS PRO Panel Mount BNC Connector - Isolated Bulkhead
The RS PRO range of coaxial connectors continues to improve, and we are proud to introduce this bulkhead fitting BNC panel mount connector. A 50 Ω female RF connector made with high-quality materials such as nickel body plating, brass contact \u0026 gold plating, plus Teflon insulation.
Why would you choose this RF connector?

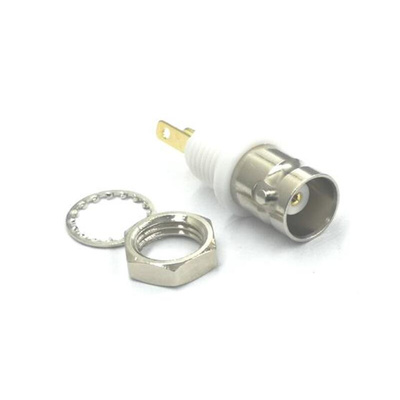

This connector has a BNC fitting at one end and a gold-plated solder pin and tab on the other. It also incorporates a convenient bayonet that enables safe coupling to a male BNC cable assembly. To complete the install a locking washer, and nut are included.
Features and Benefits
ulliFemale BNC Connector/liliPanel Mount/liliBody Plating Nickel /liliContact Material Brass /liliContact Plating Gold /lili PTFE insulators /liliLocking washer and nut/liliSolder Termination/li/ul
Electrical Specification
ulliTemperature Range -40°C ∼+60°C/liliCharacteristic Impedance 50Ω /liliFrequency Range 0∼4GHz /liliWorking Voltage 500V /liliInsulation Resistance ≥1000MΩ /liliMedium Pressure 1000V(rms) /liliVSWR ≤1.5 /liliWorking Life 500 Cycles/li/ul
You may also need.
When it comes to coaxial connectors and coaxial cables, RS PRO has you covered. Browse our extensive range using the improved filter system to find your ideal solution.
Things to consider.
Having good quality products to carry out a new install should always be a priority. Consider the RS PRO 60W, 220V to 240V soldering station, for soldering/de-soldering applications. RS stock no: a href=\"/web/p/products/1244132\""124-4132/a
Applications
ulliAntenna connection/liliCoaxial cable connection/liliRF Video signalling/liliTelecom/liliMedical Equipment/li/ul
