8937-5/24, Mascot 18W Power Brick AC/DC Adapter 5 → 24V dc Output, 2A Output, Блок питания

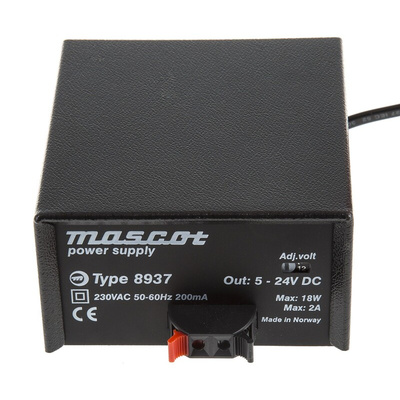

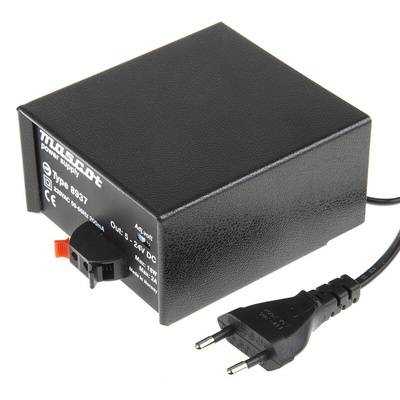

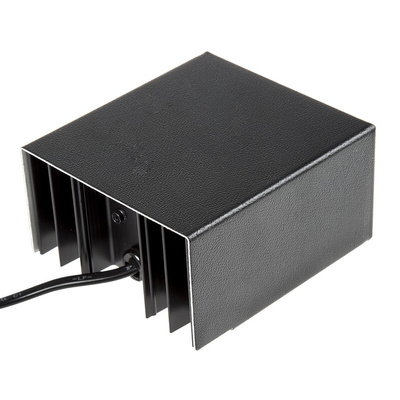

Mascot Adjustable Power Supply

The Mascot adjustable power supply is the latest invention with a voltage rating ranging from 5V to 24V. The power supply provides 18W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency of 50Hz to 60Hz. While the input voltage is 230VAC, its maximum output current is 2A. It is ideal for many small electrical devices.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) no 125/2009.

Features and Benefits

Step less adjustable output voltage
Secondary switch mode stabilised linear power supply unit
High power density (excellent power-footprint ratio)
The unit is short-circuit proof
Input is mains connector lead with Euro plug
Optional attachment system for adaptation to vehicle sockets
Overall length is 98mm
Connection type is snap-lock terminal
Thermal fuse in transformer
Mains cord

Certifications

Class II
EN 60065
EN 60950
EN 61000-6-3
EN 60555
EN 61000-6-1

8937 AC/DC power supplies - linear - regulated data sheet
