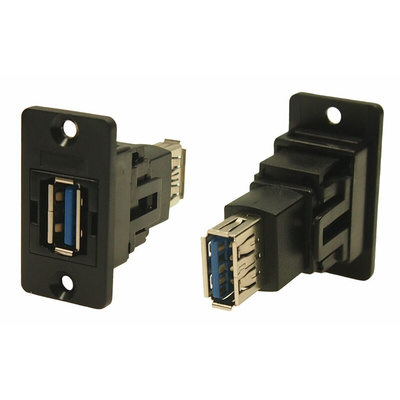

RS PRO Straight, Panel Mount, Socket to Socket Type A to A 3.0 USB Connector

RS PRO Slim Front Mounted USB 3.0 A-A

Introducing from RS PRO a range of high-quality USB Type-A connectors with female to female gender connections. These USB 3.0 connectors take up minimal space and are perfect for custom USB port interface configurations that include rack panels, enclosures, and electronic equipment. USB connectors are commonly used in audio & video applications such a television, DVDs, and computers.

Features and Benefits

• USB 3.0 Connector
• Type A, female receptacle
• Metal frame feedthrough
• Standard rectangular cut-out
• Optional hole mounting
• Use standard cable for each connector style
• Low rear profile ideal for applications with minimal space
• No soldering or punch termination
• Compatible with standard USB cables

Material

• Insert: ABS UL94 HB
• Plastic Frame: Polyamide UL94 V2
• Shell: Nickel-plated steel
• Contacts: Gold Plated
• Inner Over-mouldings: PE + PVC

Variants

• USB3.0 A-A Black plastic frame, CSK holes; RS stock no: 218-8300
• USB3.0 A-A Black plastic frame, Ø2.5 PLAIN holes; RS stock no: 218-8301

Specifications

• Voltage rating: 30V AC
• Current rating: 1.8 A max
• Contact resistance: 50mΩ max
• Insulation resistance: 20MΩ min
• Dielectric withstanding voltage: 500V AC
• Operating Temperature: -20°C to 50°C

FAQs

How do you Identify USB 2.0 & USB 3.0?
• USB white plug is USB 2.0
• USB blue plug is USB 3.0

What does USB stand for?
• USB (Universal Serial Bus) is an industrial standard that indicates the spec of cables & connectors, power supply and communication interfaces.

Applications

• Audio & Video Equipment
• Computers
• Custom Electrical Enclosures
