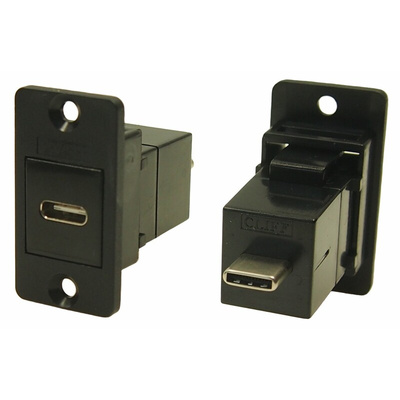

RS PRO Straight, Panel Mount, Female to Male Type USB-C USB Connector

RS PRO USB-C Feedthrough Connectors - Female to Male

Introducing from RS PRO a range of high-quality USB-C feedthrough connectors with female to male gender connections. These connectors take up minimal space and are perfect for custom USB interface configurations that include rack panels and electronic equipment. USB-C is fast becoming the connector of choice due to their dual role capacity supporting power and data transfer.

Features and Benefits

• Feedthrough USB-C
• Standard rectangular cut-out
• Various hole mounting options
• Use standard cable for each connector style
• Low rear profile ideal for applications with minimal space

Material

• Insert: ABS UL94 HB
• Plastic Frame: Polyamide UL94 V2
• Shell: Gold plated
• Contacts: Gold Plated

Specification

• Maximum Rated Current - 3A
• Maximum Working Voltage – 30 V
• Withstanding Voltage - 100V for 1 minute
• Contact Resistance - 40 Milli-ohms Max
• Insulation Resistance - 100 Mega-ohms Min
• Insulator Flammability Rating - UL94V0
• Insertion Life - 10,000 Cycles

Variants

• Slim FM USB-C Black plastic frame, CSK holes; RS stock no: 218-8312
• Slim FM USB-C Black plastic frame, Dia:2.5mm plain holes; RS stock no: 218-8313

Applications

SB-C feedthrough connectors are ideal for industrial and entertainment applications that require a USB C connection via a rack panel. The connectors can be mounted to a dia. 22.5 mm cut-out panel, offering easy connection for a range of audio and video interface devices. USB-C connectors are commonly used to connect devices such as;

• Electronic equipment for power supply
• Computer hard drives
• Speakers
