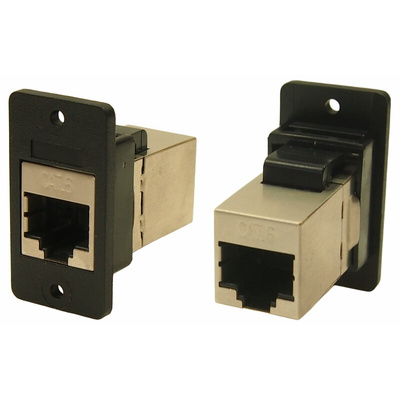

RS PRO Female RJ45 Connector, Panel Mount, Cat6

RS PRO Slim RJ45 Cat6 Shielded Front Mount Feedthrough Connector

From RS PRO a range of super high-quality RJ45 feedthrough connectors with female ports. These shielded panel mount Cat6 connectors are commonly used in custom applications where ethernet-based connectivity is required. They have a slim profile so will only take up minimal space when installed in enclosures or rack panel arrangements.
During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. Slim RJ45 is compatible with Cat6 ethernet cables and when combined produce reliable transmissions in telecommunications and networking.

Features and Benefits

• RJ45 shielded connector
• Cat6
• Female receptacles
• Panel Mount
• Standard rectangular cut-out
• Optional hole mounting
• Use Cat6 cables (T568A & T568B wiring)
• Low rear profile ideal for applications with minimal space
• No soldering or punch termination
• Operating temperature: Min -10 °C, Max +70 °C

Material

• RJ45 In-Line Coupler: PC/ABS, UL 94V-0, Black colour, fully shielded
• Coupler Contact: Phosphor Bronze, 3-50 micro inches gold plating over nickel plate
• PCB: FR4, UL 94V-0
• Plastic frame: Polyamide UL94 V-2

Variants

• FM SLIM FT Cat6 RJ45 Shielded Black plastic frame, CSK hole; RS stock no: 218-8319
• FM SLIM FT Ca6 RJ45 Shielded Black plastic frame, ø2.5 PLAIN holes, RS stock no: 218-8320

CAT6

• Cat6 is faster than cat5e, supports transfer speed up to 10 Gbps over a limited distance

Consider RS PRO Cat6 Cables!

RS PRO offers a wide range of Cat6 cables, both terminated and unterminated. These cables are a version of ethernet cables, running from the internet source, like a router, to the intended target. The use of copper within the patch cord itself guarantees excellent network connection with reliable and smooth internet activity, suitable for both home and workplace environments. Browse our range for your ideal solution.

Applications

• Telecommunication
• Ethernet Network Interface
• Computers

Why would you choose RS PRO for RJ45 Connectors?

RS PRO offers a wide range of ethernet connector products to suit your applications. Our range of RJ45 connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.

Approvals

• ISO/IEC 11801 and EN50173
• ANSI/TIA/EIA 568B.2
