Gender, RS PRO Female Cat3 RJ11 Connector

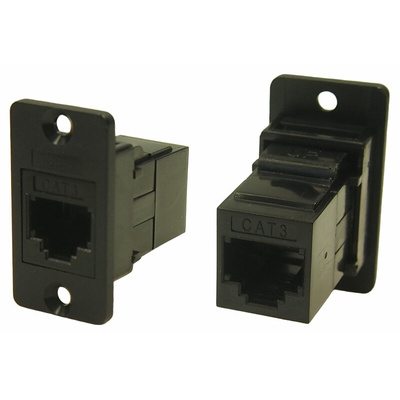

RS PRO Slim RJ11 Cat3 6P4C Front Mount Feedthrough Connector
From RS PRO a range of super high-quality RJ11 feedthrough connectors with female ports. These panel mount Cat3 connectors are commonly used in custom applications where telecommunication connectivity is required. They have a slim profile so will only take up minimal space when installed in enclosures or rack panel arrangements.During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. Slim RJ11 connectors are compatible with Cat3 phone cables and when combined produce reliable transmissions in telecommunications, ADSL and modem networking.
Features and Benefits
RJ11 shielded connector Cat3 Female receptacles Compatible with 6P4C phone crimp plugs Panel Mount Standard rectangular cut-out Optional hole mounting Low rear profile ideal for applications with minimal space No soldering or punch termination Operating temperature: Min -10 °C, Max +60 °C
Material
RJ11 In-Line Coupler: PC/ABS, UL 94V-0, Black colour Coupler Contact: Phosphor Bronze, 3-50 micro inches gold plating over nickel plate PCB: FR4, UL 94V-0 Plastic frame: Polyamide UL94 V-2
Variants
SLIM FM Cat3 RJ11 6P4C Black plastic frame, CSK holes; RS stock no: a href=\"/web/p/products/2188322\""218-8322/a SLIM FM Cat3 RJ11 6P4C Black plastic frame, ø2.5 PLAIN holes, RS stock no: a href=\""/web/p/products/2188323\""218-8323/a
Applications
Telecommunication Industrial \u0026 commercial communication Computers
Why would you choose RS PRO for RJ11 Connectors?
RS PRO offers a wide range of ethernet connector products to suit your applications. Our range of RJ11 connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we re confident of their exceptional quality.
