Rockwell Automation 1492-SPM1B100-N Single Pole Supplemental Circuit Breaker
Maximise safety and uptime by ensuring reliable overcurrent protection for your equipment with the 1492-SPM1B100-N MCB supplementary protector by Rockwell Automation.
The Rockwell 1492-SP series includes thermal magnetic supplementary protectors which can be used in applications where branch circuit protection is already present (or is not needed).

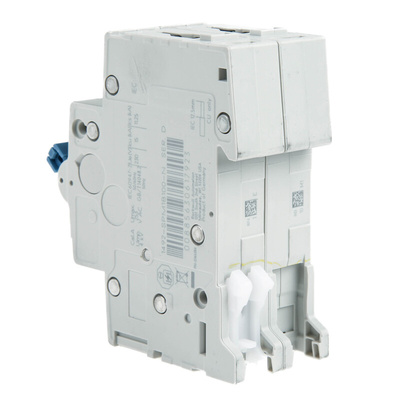

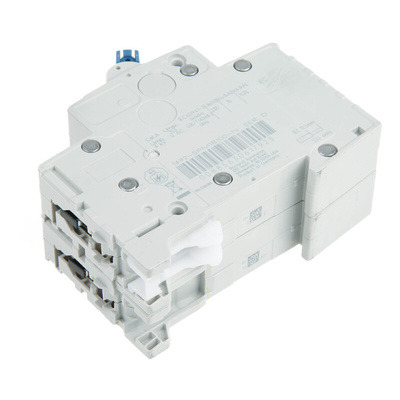

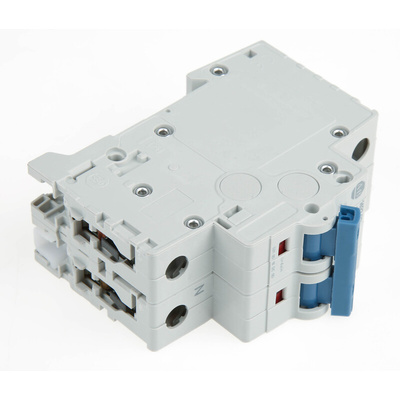

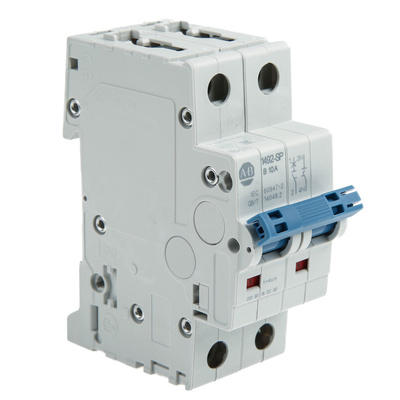

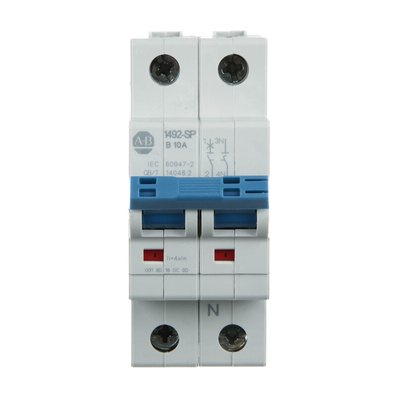

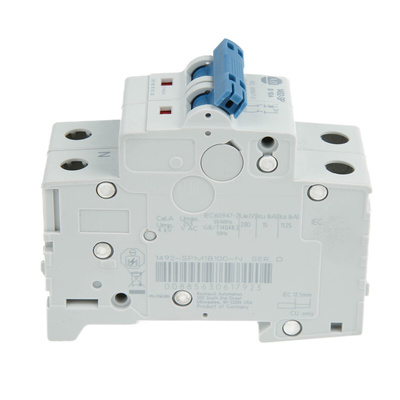

The 1492-SPM1B100-N model is a 1 Pole + Neutral MCB (Miniature Circuit Breaker) with Trip Curve type B. The rated current is 10A and it has a rated frequency of 50/60 Hz. It features an indicator window which clearly displays the contact state: red for closed, green for open, allowing fast troubleshooting.
This MCB device can be mounted in any position on a DIN rail for easy installation. The printing on this protector ensures improved safety and durability as it is scratch and solvent resistant. The 1492 circuit breakers are also IP20 finger-safe on all sides, offering higher protection against electric shock. They also have great longevity, with a high mechanical endurance of 20,000 operations.
Features and Benefits:
• Current limiting
• RoHS compliant
• Eco-friendly – this device is fully recyclable
• Ideally suited for extreme ambient conditions, with an operating range of -25…55°C (-13...131°F)
• Excellent vibration and shock resistance which prevents nuisance tripping
• Dual terminals offer greater connection security
• Rapid breaking time
What is an MCB and how do they work?
A miniature circuit breaker, also called an MCB, is a type of automatically operated electrical switch. The purpose of an MCB is to protect an electrical circuit against damage caused by excess current. These devices are designed to trip in the event of a short circuit or overload. They contain a bimetallic strip which heats up and bends when exposed to unsafe or abnormal current levels. This causes the switching mechanism to trip and the contacts to separate, interrupting the current and protecting the circuit. MCB’s are considered to be more reliable, sensitive, and convenient than fuses and are also resettable.
Техническая спецификацияDatasheet-1492-SPM1B100-N
1492-SPM Specifications
Rockwell Automation Circuit Breakers Brochure
Rockwell Automation MCB Migration Guide
1492-SP Supplementary Protectors Profile
