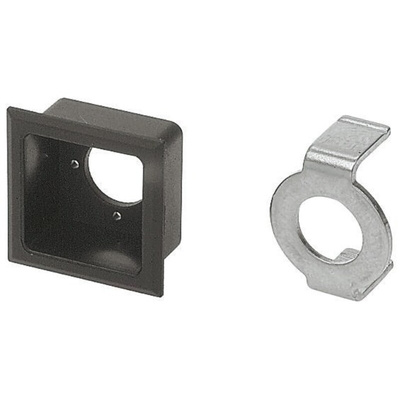

18-920.1, EAO Push Button Bezel for Use with Square Lens Switch

LED Indicators, 15.8mm Mounting

Professional grade indicators that are ideal for audio and instrumentation uses. The indicators mount into an 8 mm cut-out for a raised head and into a bezel for a flush mount. The bezels in turn mount into a 15.8 mm round or 15.8 mm square cut-out

LED illumination (contained within lens)
PCB plug in sockets available, see stk. no 219-1041 typically

Note

To complete the flush fitting indicator a bezel is required; see stock number 2188758 (round) and 2188736 (square)

Note

These LED indicators should not be operated without a suitable series resistor or other current-limiting device

10mm - 15.8mm Mounting

All products have a reverse voltage of 5V.

Datasheet - 18-920.1
