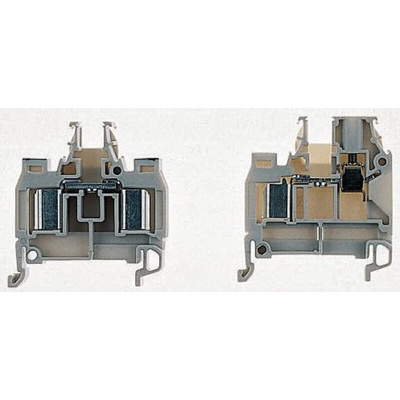

1SNA199051R2600, Entrelec SNA Series Grey DIN Rail Terminal Block, 1.5mm², Single-Level, Screw Termination

Standard IDC Terminals

Insulation Displacement (IDC) technology achieves speed of assembly and reliability. A simple cable insertion tool is used to insert the unprepared wire into the terminal. Two styles of terminals are offered, IDC to IDC and IDC to screw. Two sizes within these two types are available to cater for different wire sizes.Thus the options are as follows:,IDC to IDC - 0.34-1.5mm² (both sides),IDC to IDC - 1.0-2.5mm² (both sides),IDC (0.34-1.5mm²) to screw (0.22-4mm²),IDC (1.0-2.5mm²) to screw (0.22-6mm²),System uses jumper bars, markers, etc. common to the 5000 series (see stock no. 447-428 – typical of range)

No wire stripping or preparation
Vibration/corrosion tested to DIN57611
Pull-out exceeds IEC947-7.1

Approvals

UL listed & CSA certified, material to UL94V-0
