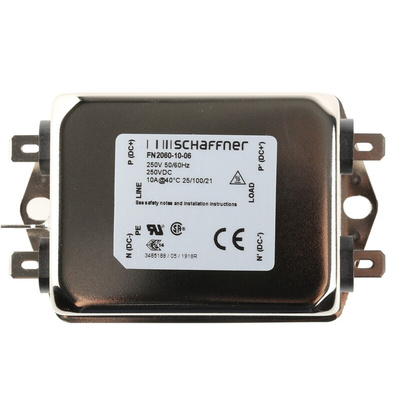

FN2060-10-06, Schaffner, FN2060 10A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase, Фильтр

FN 2060 Series

Schaffner's FN2060 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment and various noisy applications requiring good filter performance.

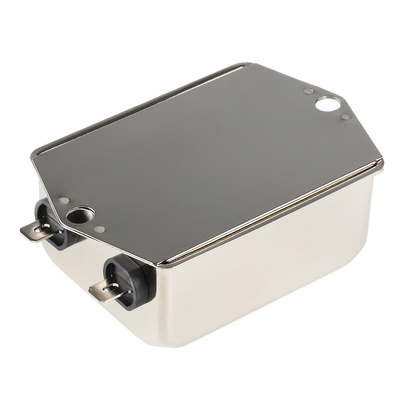

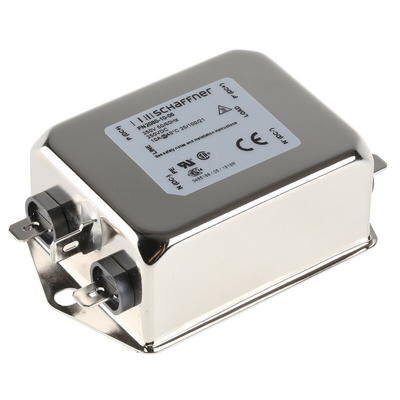

Two-stage chassis mount filters in aluminium case
Extra stage improves common mode performance
Connection by 0.25in Faston terminals
Rated currents from 1 → 30 A
High differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)

Note

FN2060 filters are also available as single-stage filters (FN2010 series)

Approvals

UL recognised, CSA, VDE.

Approvals

UL; CSA; VDE

CED 143131B

FN2060 Series Datasheet
